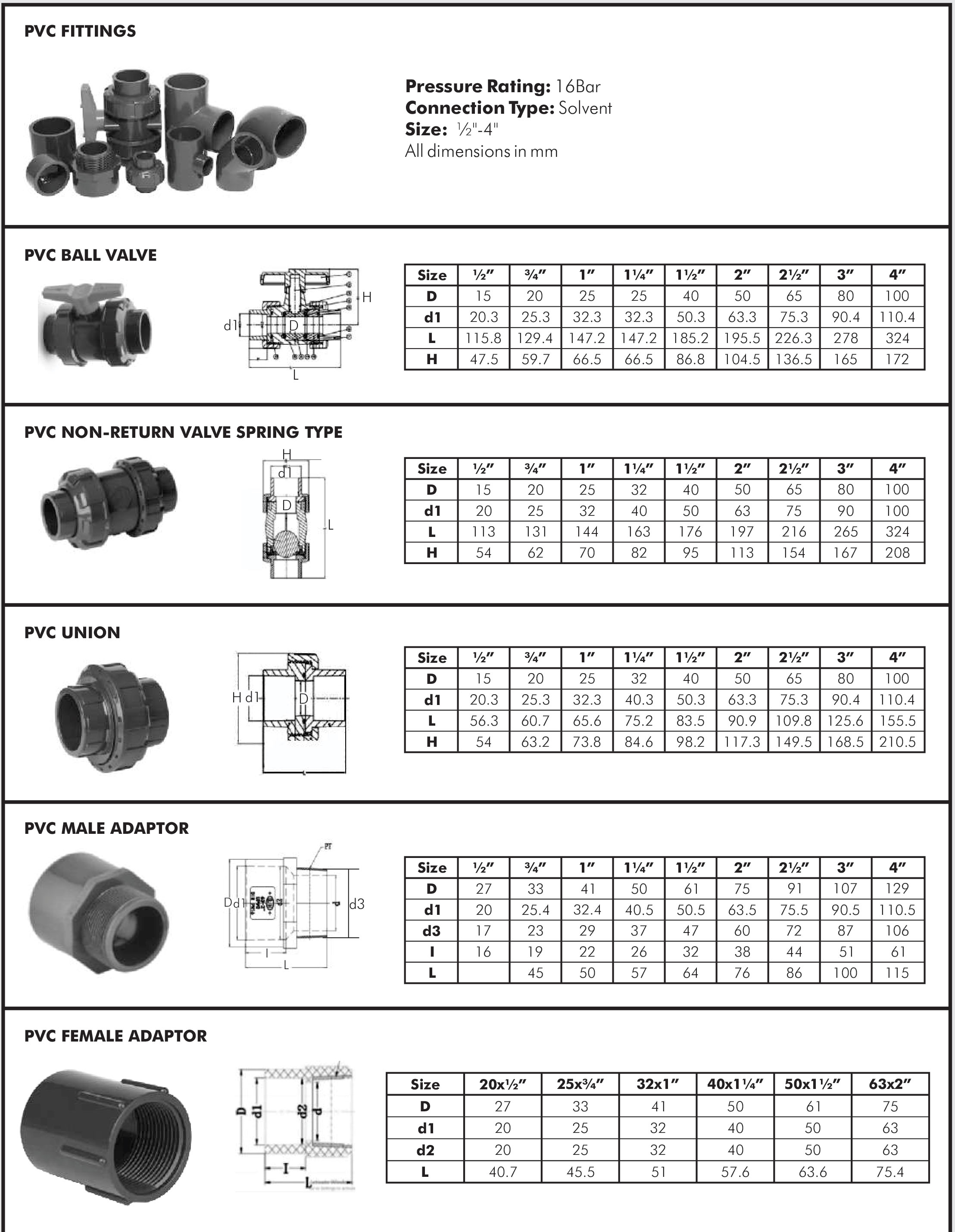

PVC Fittings
Pressure Rating: 16Bar
Connection Type: Solvent
Size: ½"-4"
All dimensions in mm
PVC BALL VALVE
| Size |
½" |
¾" |
1" |
1¼" |
1½" |
2" |
2½" |
3" |
4" |
| D |
15 |
20 |
25 |
25 |
40 |
50 |
65 |
80 |
100 |
| d1 |
20.3 |
25.3 |
32.3 |
32.3 |
50.3 |
63.3 |
75.3 |
90.4 |
110.4 |
| L |
115.8 |
129.4 |
147.2 |
147.2 |
185.2 |
195.5 |
226.3 |
278 |
324 |
| H |
45.5 |
59.7 |
66.5 |
66.5 |
86.8 |
104.5 |
136.5 |
165 |
172 |
