The Dayliff range of portable petrol generators is dependable quality products specially designed for mains standby and remote site power supply applications. Particular features of all DG-P models are:-

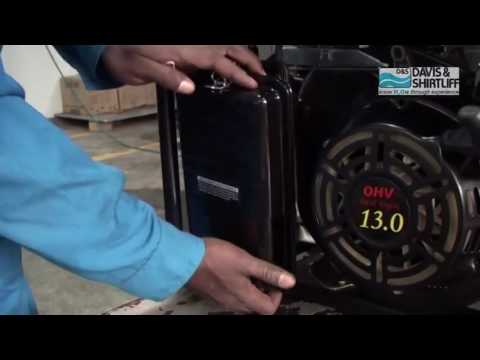

- Reliable and economical air-cooled OHV petrol engines equipped with large size exhausts and air cleaners for low noise operation.
- High-efficiency square core alternators providing consistent AC power output.
- DC output option for powering DC appliances. (Not DG3000E)
- Option of the strong tubular frame, trolley mount (T-suffix) or canopied (S-suffix), and Economy (E-suffix) low-cost models suited for a lighter application.
- Integrated control panel with a selection of different controls for operational convenience.
- Fuseless type over current protection.
- Oil alert system to stop the engine in the event of low oil level (not DG950P, DG1200P).
- High capacity fuel tank for extended operation (not DG950P).

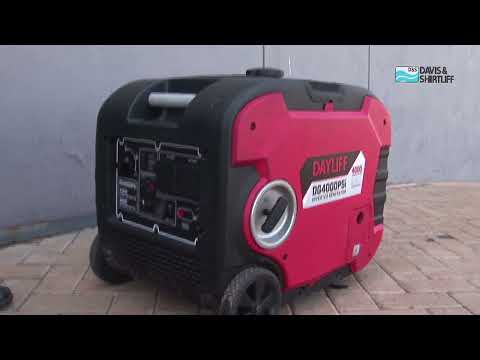

Also available is the high specification DG4000PSi model that includes inverter technology with the following features:-
- High specification petrol engine incorporating automatic speed control that adjusts engine speed to load leading to reduced operating fuel consumption, reduced emissions and quieter operation.
- Square core alternator fitted with a digital inverter that gives regulated 50Hz frequency and perfect sine wave output suitable for all types of sensitive electronic equipment.
Dayliff DG generators are of compact design and their advanced features, reliability, and economy of operation make them the ideal solution for all small-scale power supply requirements.
DERATING: Given outputs are sea-level ratings. Sets should be rated at 1% for every 100m higher than 100m above sea level, and 2% for every 5°C temperature above 20°C for naturally aspirated engines
ELECTRICAL DATA
Alternator: Brushless, Self-exciting, 2 pole
Power Output: 50Hz, 240V, single phase
Voltage Regulator: AVR
Power Factor: 1
Speed:3000rpm
Direct Current:12V/8.3A
SPECIFICATIONS
| Model |
Output |
Engine |
Fuel Tank Capacity (Litres) |
Operating Period (Hrs) |
Starter |
| Rated (kVA) |
Max. (kVA) |
Model |
Capacity (cc) |
Max Power (HP) |

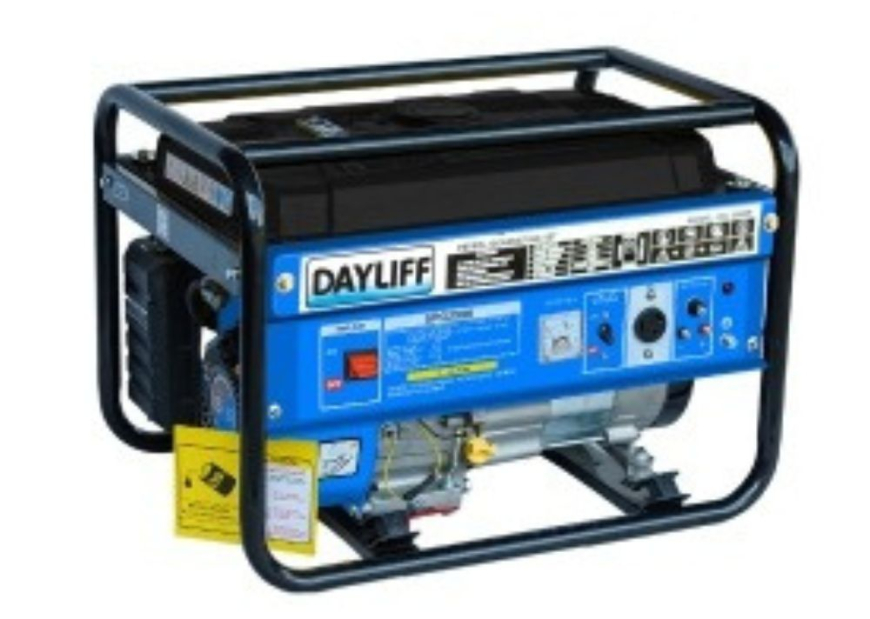

| DG 1200S |
1 |
1.1 |
SW156F,4T |
96 |
3.5 |
6 |
7 |
Recoil |
| DG 3000S/LPG |
2.5 |
2.7 |
SW170F,4T |
225 |
7.5 |
15 |
10 |
| DG 3800ST** |
2.8 |
3 |
ElectricElectric |
| DG 6500ST** |
5 |
5.5 |
SW190F,4T |
420 |
15 |
25 |
6 |
| DG 7500ST**/LPG |
6 |
6.5 |
SW192F,4T |
440 |
17 |
| DG 4000PSi*** |
3.6 |
4 |
GK225, Vi |
223 |
7.5 |
10 |
5 |
| DG 7500PS* |
6 |
6.5 |
GK420, 4T |
420 |
16 |
15 |
4 |
| DG 9000PT** |
6.5 |
7 |
GK460, 4T |
460 |
18 |
28 |
6.2 |
*Acoustic Set with AMF, noise level: 70dBA@7m, ** T Suffix indicates Trolley Mount, ***I denotes inverter set
DIMENSIONS AND WEIGHTS
| Model |
Hour Meter |
Voltmeter |
Breaker on Indicator |
Oil Alert System |
AC Power Output |
L (mm) |
W (mm) |
H (mm) |
Weight (kg) |
| DG1200S |
Χ |
√ |
Χ |
Χ |
1No. Plug Socket |
465 |
365 |
378 |
25 |
| DG3000S/LPG |
√ |
√ |
√ |
√ |
2No. Plug Socket |
600 |
440 |
460 |
57 |
| DG3800ST |
√ |
√ |
√ |
√ |
710 |
460 |
58 |
| DG6500ST |
√ |
√ |
√ |
√ |
1No. Plug Socket + 1No. CEE Socket |
810 |
560 |
600 |
95 |
| DG7500ST/LPG |
√ |
√ |
√ |
√ |
96 |
| DG400PSi |
Χ |
Χ |
Χ |
√ |
2 No. Plug Socket |
685 |
460 |
525 |
42 |
| DG7500P |
√ |
√ |
√ |
√ |
1No. Plug Socket+ |
1000 |
520 |
740 |
126 |
| DG9000PT |
Digital Multimeter - Voltz, Hz and Hours |
√ |
√ |
1No. CEE Socket |
720 |
530 |
610 |
85 |
