PUMP

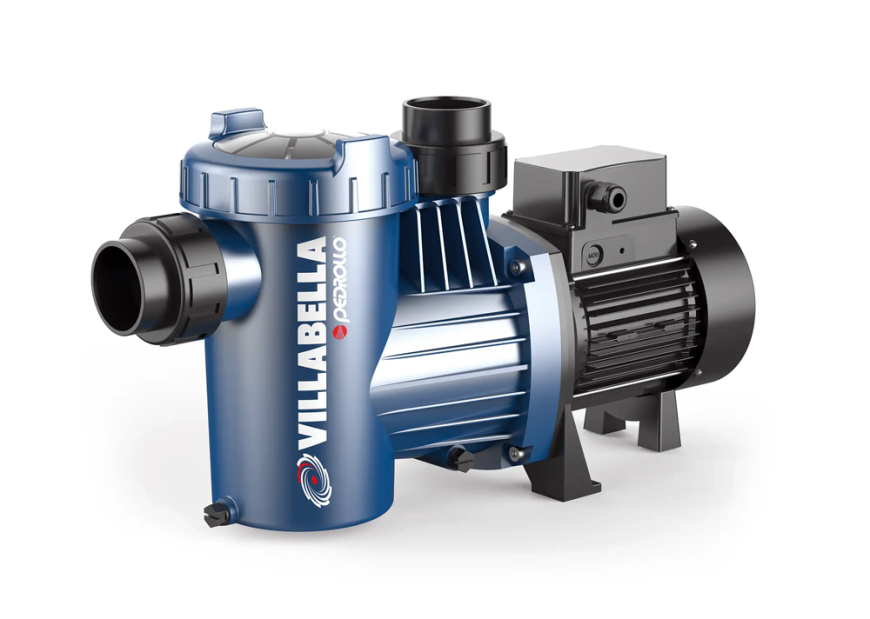

Pedrollo VILLABELLA are self-priming swimming pool pumps specially designed for residential and institutional pool applications. Features include an extra-large pre-filter to reduce cleaning frequency fitted with a transparent cover for easy visual inspection, a quick-release threaded lid with key for simple opening and heavy duty materials for extended durability and quiet operation. All pump components are made from Glass-fibre reinforced polypropylene with Norryl impeller giving high resistance to heat, chemicals and salt corrosion. The motor case is provided with cataphoresis treatment for added protection. Pumps are supplied complete with connection unions.
MOTOR
The pump is coupled to an IE2 rated high-efficiency induction motor rated for continuous operation with integral thermal motor protection overload that can be connected directly to mains power supply through a 15 amp fuse or MCB.
Enclosure Class: IP55
Insulation Class: F
Voltage: 1x240V
Speed: 2900rpm
OPERATING CONDITIONS
Pumped Liquid: Thin, Clean, Chemically non-aggressive liquids without solids or fibres
Max. Liquid Temperature: +40°C.
Maximum Ambient Temperature: 40°C.
Maximum Suction Lift: 4m with suction valve
Maximum Working Pressure: 2.5bar
PUMP DATA
| Model |
Motor |
Current (A) |
Dimensions (mm) |
Weight (kg) |
| kW |
HP |
Inlet / Outlet (") |
B |
| VILLABELLA 50m |
0.37 |
0.5 |
4.2 |
2 |
500 |
11.7 |
| VILLABELLA 75m |
0.55 |
0.75 |
4.7 |
11.5 |
| VILLABELLA 100m |
0.75 |
1 |
6.0 |
13 |
| VILLABELLA 150m |
1.1 |
1.5 |
7.5 |
580 |
14 |
| VILLABELLA 200m |
1.5 |
2 |
9.5 |
15 |
| VILLABELLA 300m |
2.2 |
3 |
10.5 |
17 |
