DPX Pump



The DAYLIFF DPX range of swimming pool pumps are quiet running and reliable products suitable for light and medium duty pool applications. All models feature a large strainer basket with easy-open transparent cover and connecting unions and all hydraulic components are made from high strength glass reinforced corrosion resistant polypropylene for long life.

MOTOR
Asynchronous 2-pole TEFC motor designed for continous duty. Single phase motors are provided with built-in thermal overload protection and can be connected directly to the mains electrical supply through a 10A MCB or switch fuse. Three phase motors need to be connected through a DOL starter.

Insulation Class: F
Enclosure Class: IP55
Speed: 2800rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean non-chemically aggressive liquid without solid particles or fibers
Max. Fluid Temperature: 60°C
Max Ambient Temperature: -10°C - +40°C

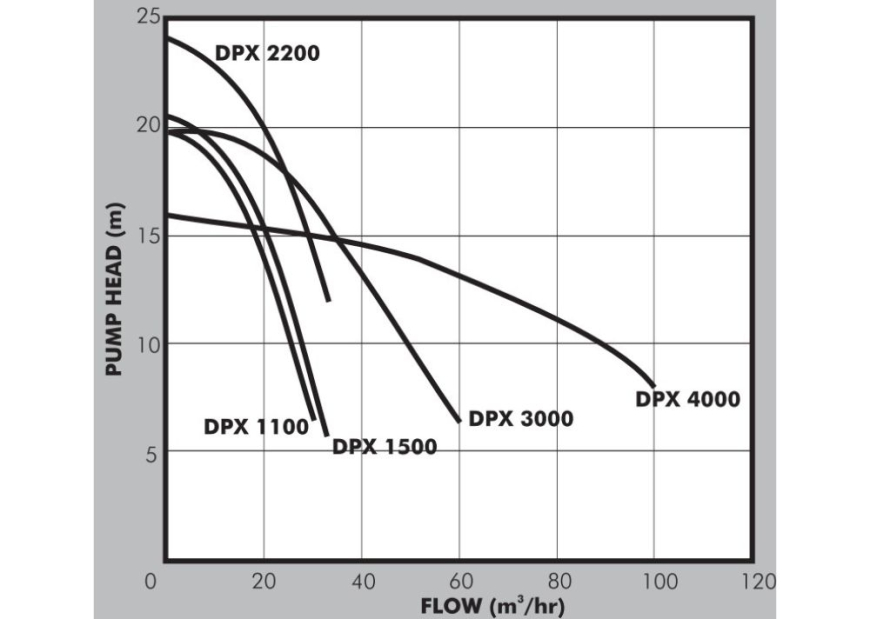

PUMP DATA

Model Voltage (V) Power (kW) Current (A) Dimensions (mm) Weight (kg)
1ph 3ph DN1/DN2 A H
DPX1100 1x240 1.1 6.5

75

656

358

22
DPX1500 1.5 8.5   24
DPX3000 3x415 3   6.4 708 31
DPX4000 4   8.3 110 841 418 36
