VEGA Instrumentation provides world-class solutions for commercial and industrial customers seeking reliable measurement, easy operation, and room for future expansion. The standard portfolio covers compact instruments for point level (VEGAPOINT 11), continuous level (VEGAPULS C 11), and pressure measurement (VEGABAR 39), together with local display and control (VEGAMET 841).Special-order options include alternative process connections for standard and hygienic applications, explosion-protected versions,extended measuring ranges, and relevant international certifications and approvals. For more demanding applications, VEGAPULS 6X and VEGAFLEX 81 are available on order, with additional VEGA hydrostatic and vibration-based instruments available on request. Bluetooth wireless access simplifies commissioning and operation of VEGAPULS instruments on high silos and other hardto-access installations. Depending on model, the instruments offer robust dust- and water-resistant protection with IP66 or higher ratings. All field instruments operate on 12/24 V DC, while VEGAMET 841 can be powered from AC mains or 24V DC power supply.
VEGAPULS Non-contact Continuous Level Measurement

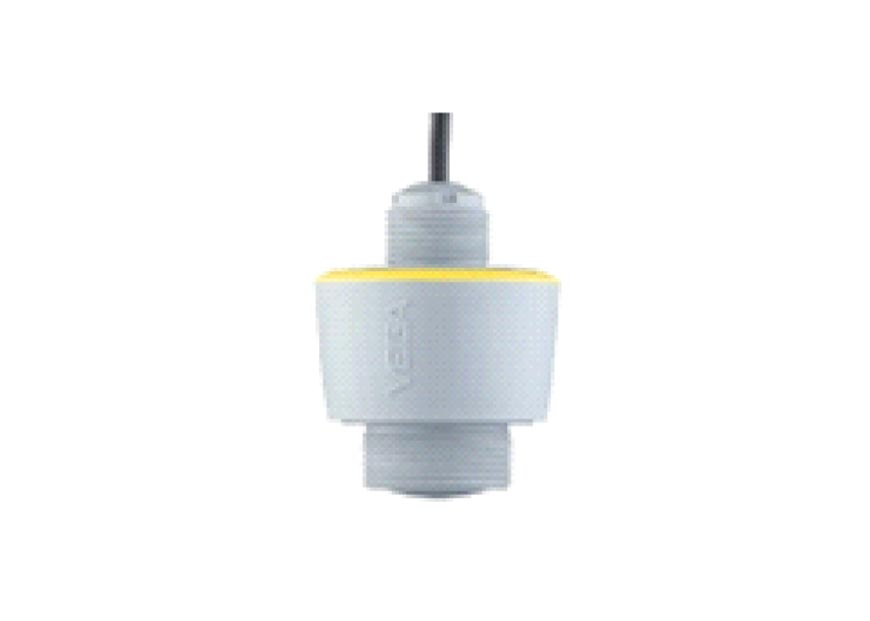

VEGAPULS C 11 provides maintenance-free radar level measurement for liquids and bulk solids, with reliable accuracy unaffected by measured medium and process conditions. Supplied with a 10m cable, it is ideal for water and wastewater, open channel flow, grain and cereal silos, and aggregate storage.
| Process Limit |
60°C, 3 bar |
| Measuring Range |
Up to 10m, Accuracy ≤ 5 mm |
| Output Signal |
4-20 mA |

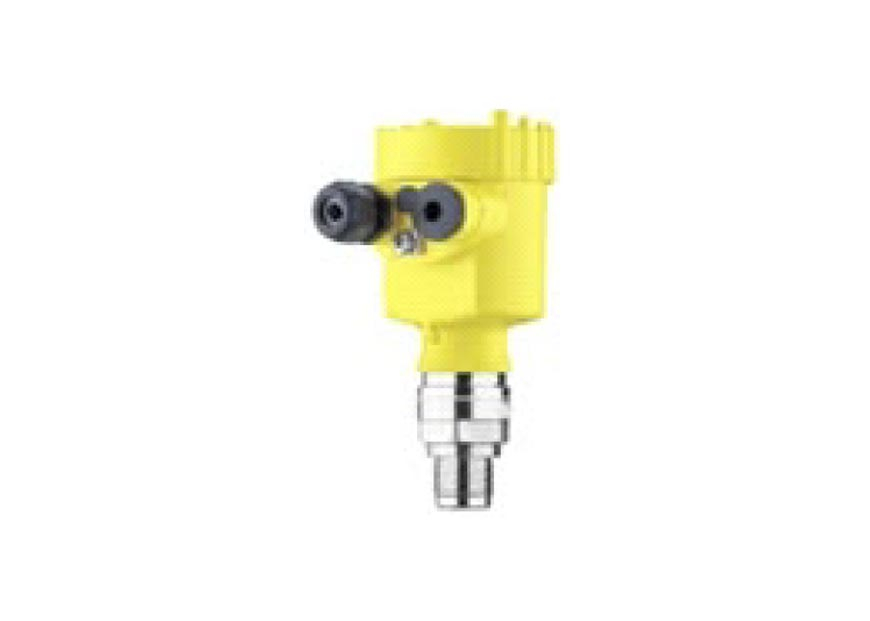

VEGAPULS 6X is a high-performance radar sensor for liquids and bulk solids in demanding applications. Available on special order with multiple antenna options, it is suited to extreme temperatures, high pressures, aggressive media, hygienic processes, and bulk solids
| Process Limit |
450°C, 160 bar |
| Measuring Range |
Up to 120m, Accuracy ≤ 1 mm |
| Output Signal |
4-20 mA/HART, Modbus |
VEGABAR Pressure Measurement

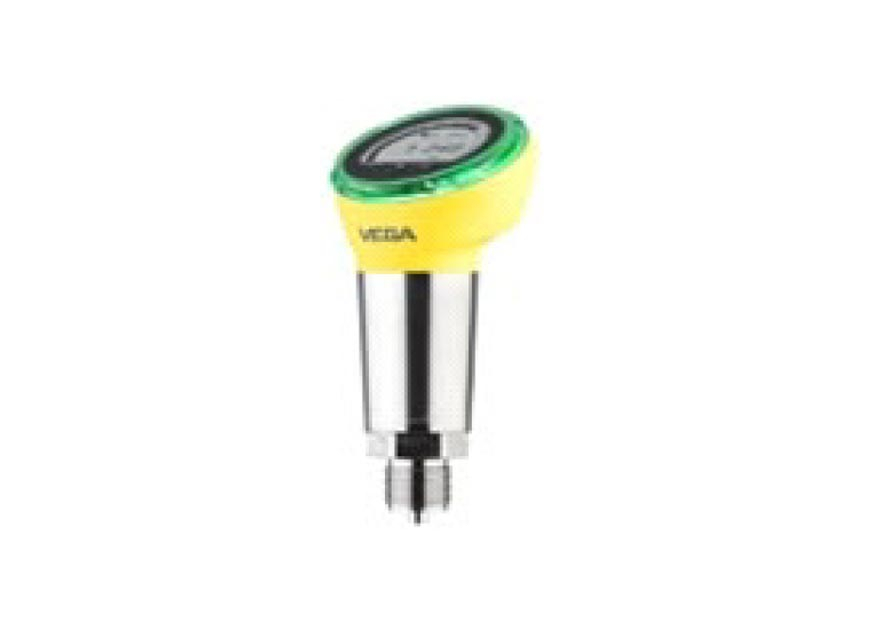

VEGABAR 39 is a universal pressure sensor for gases, vapours, and liquids, with an integrated switching function and display. Typical uses include pressure monitoring, hydraulics, compressed air and gas systems, hydrostatic level measurement, and CIP/SIP in food and beverage, chemical, and utility applications.
| Process Limit |
130°C, 60 bar |
| Measuring Range |
-1 to 60 bar |
| Output Signal |
4-20 mA + Transistor Switch |
VEGAFLEX Guided Wave Radar Level Measurement

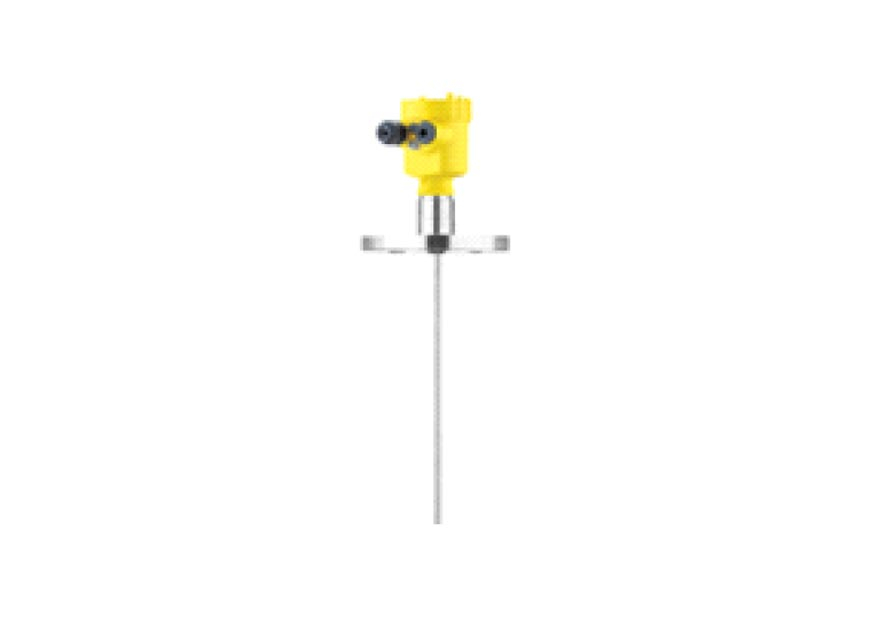

VEGAFLEX 81 is a guided wave radar for reliable level and interface measurement in liquids, even under challenging process conditions including steam, foam, build up or condensation. Available on order for separators, storage tanks, chemical and pharmaceutical processes, and other demanding applications
| Process Limit |
200°C, 40 bar |
| Measuring Range |
Up to 75m, Accuracy ≤ 2 mm |
| Output Signal |
4-20 mA/HART, Modbus |
VEGAPOINT Point Level Detection Switch

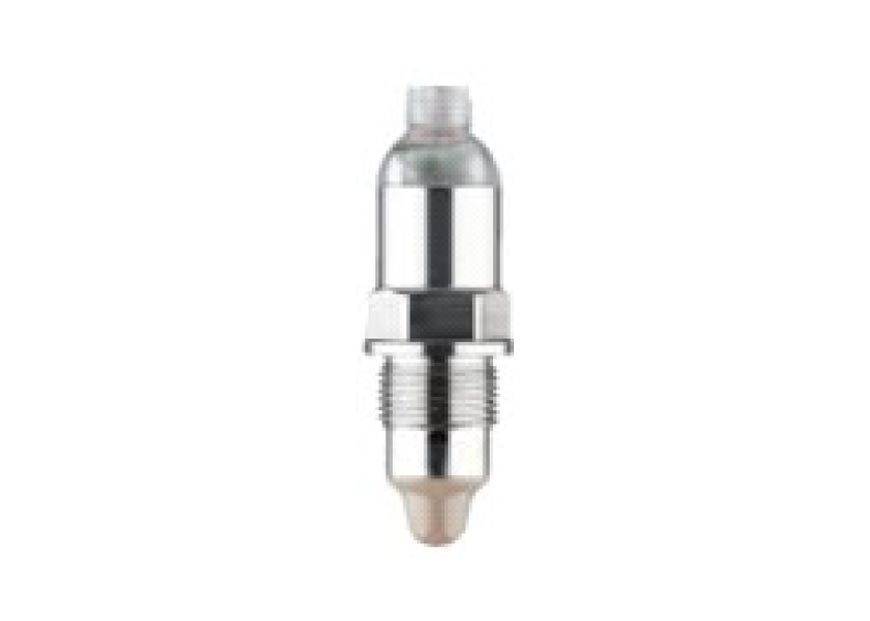

VEGAPOINT 11 is a compact capacitive level switch for reliable detection of water-based liquids. It features 360° status indication and delivers maintenance-free operation with precise switching. Its compact design makes it well suited to small pipelines and hygienic installations. Typical uses include overfill and dry-run protection, tank level alarms, and pipeline detection in food, pharmaceutical, water treatment, and chemical dosing processes
| Process Limit |
100°C, 25 bar |
| Measuring Range |
IP69 |
| Output Signal |
Transistor Switch + IO-Link |
VEGAMET Process Display and Controller

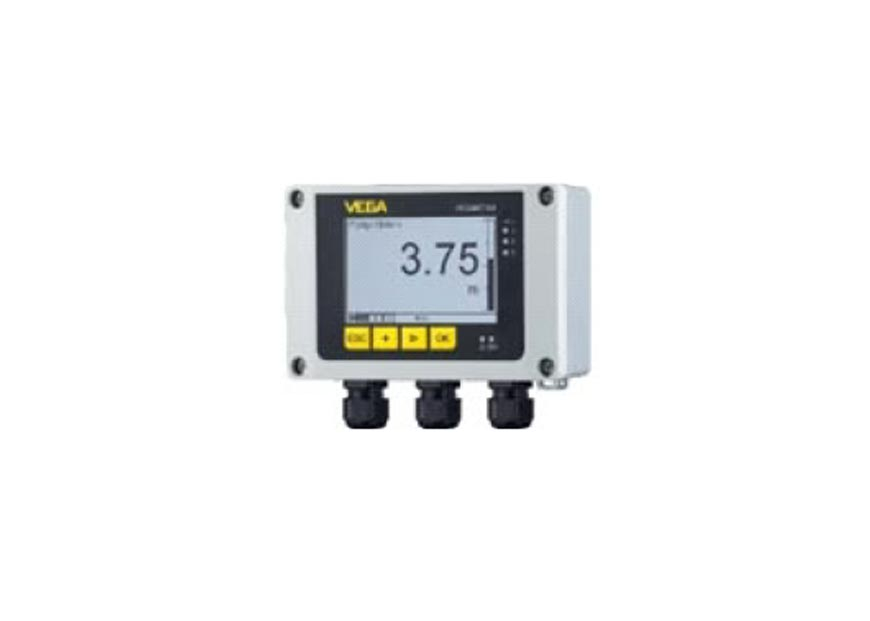

VEGAMET 841 is a field-mounted controller and display unit that powers, processes and displays measurements from compatible sensors such as VEGAPULS and VEGABAR. It supports pump control, totalising flow calculations and limit monitoring, making it well suited for pump control, overfill protection, open channel and weir flow measurement, remote display/SCADA interfacing and batching applications.
| Process Limit |
100-230 Vac / 24-65 Vdc |
| Measuring Range |
1 x 4-20 mA |
| Output Signal |
3 x Relay, 1 x 4-20 mA |
