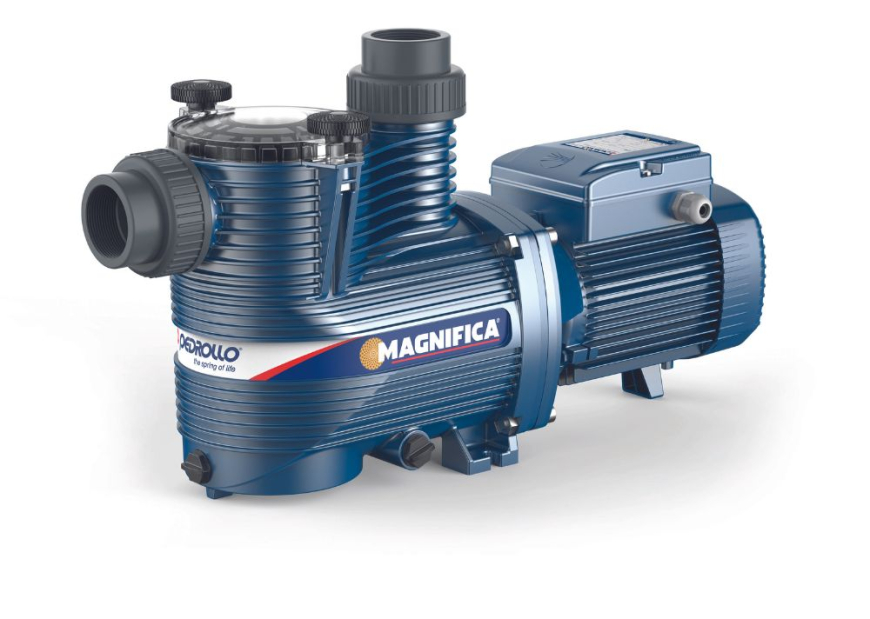

Magnifica Pool Pumps

Pedrollo MAGNIFICA are self-priming swimming pool pumps specially designed for residential and institutional swimming pool applications. Features include a large pre-filter basket with an easy-release see-through lid, high flow rate with low energy consumption, stable base support for pump and piping and double insulation between hydraulic and electric parts for safety. All pump components are made from corrosion-resistant Noryl reinforced with glass fiber for long life and durability. Pumps are supplied complete with connection unions.

The pump is coupled to a TEFC, brushless induction motor rated for continuous operation with in-built thermal overload protection and can be connected directly to mains power supply through a 15 amp fuse or MCB.

Enclosure Class: IP55
Insulation Class: F
Voltage: 1x240V
Speed: 2900rpm

Pumped liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Maximum Fluid Temperature:+40°C
Maximum Ambient Temperature:+50°C
Maximum Suction Lift: 4m
Maximum Working Pressure: 2.5bar


Pump Power Current(A) Dimensions(mm) Weight(kg)
 kW  HP  (B)
MAGNIFICA 1 0.55 0.75 4 583 14
MAGNIFICA 2 0.75 1 5.4 583 15
MAGNIFICA 3 1.1 1.5 7.9 657 16
MAGNIFICA 4 1.5 2 10 19
MAGNIFICA 5 2.2 3 12.5 21
