DCX

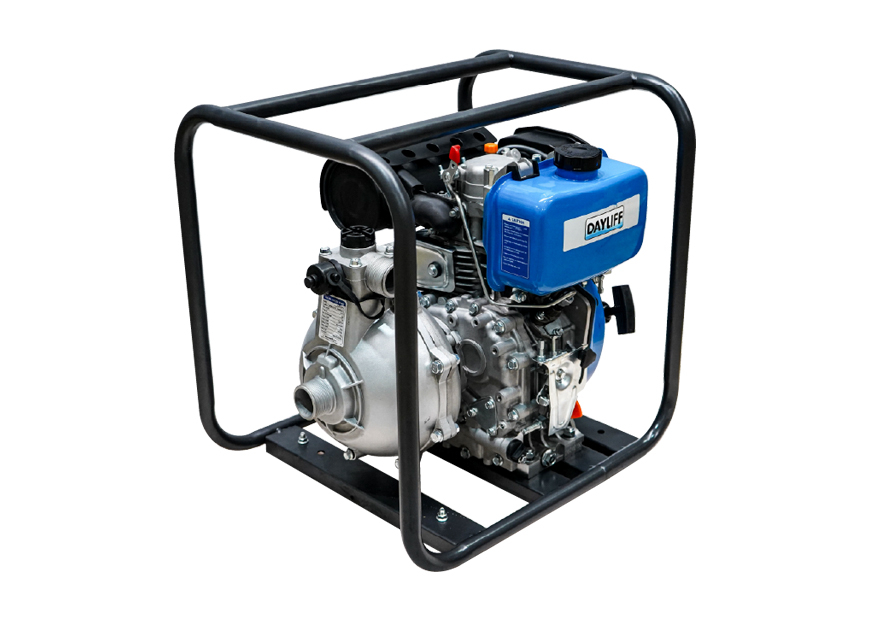

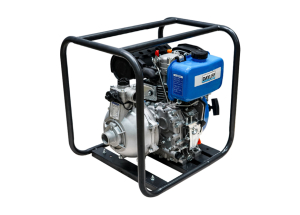

The DAYLIFF DCX range of portable high pressure pumps are of self priming closed impeller centrifugal type specially designed for high head water transfer, fire fighting and irrigation applications. Pumps are fitted with one or two impellers for medium or high pressure flow performance and are available with either petrol or diesel engines.

Pump construction is high grade aluminium body and impellers and pumps are supplied with quick couple suction and inlet connectors and a strainer. A sturdy carrying and protection frame is also provided.

ENGINE
Engine options are available as follows:-

Petrol
4-stroke OHV single cylinder air cooled design with transistorised ignition, built in oil alert and recoil start.

Diesel
4-stroke OHV single cylinder diesel injection air cooled design with recoil start.

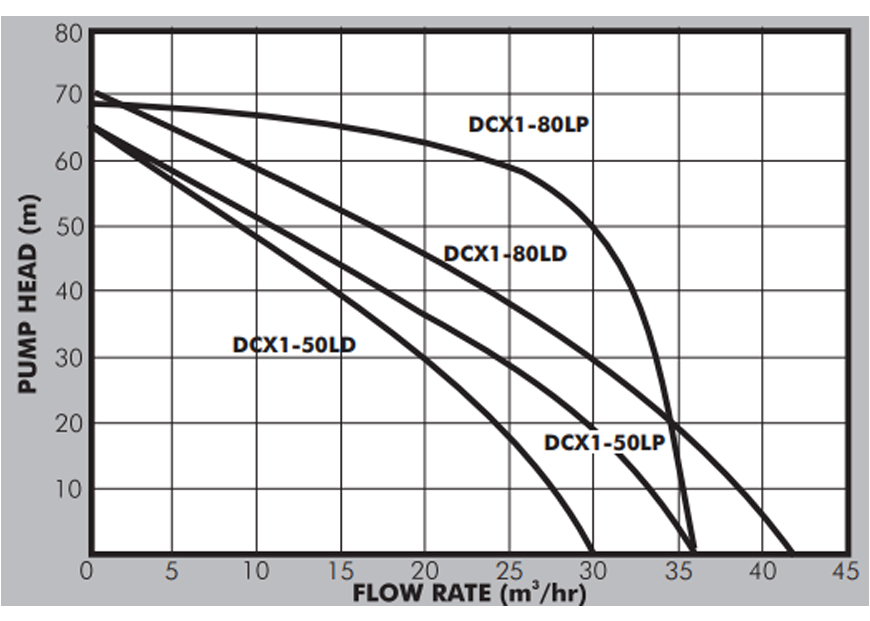

Note that performance curves for all engines relate to the engine governor set at maximum speed to achieve maximum rated power output. To prolong engine life pumps should only be run under maximum power conditions for short periods and for extended duty the throttle setting should be reduced to approximately three-quarters power. Pump performance will then be reduced accordingly.

SPECIFICATIONS

Model Engine Fuel Dimensions (mm) Weight (kg)
Fuel Type Capacity (cc) Max. Power (HP) Tank (ltr) Consumption (l/hr) L W H
DCX1 50P Petrol GK210 212 7 3.6 1.7 490 400 422 27
DCX1 80D Diesel LA186F 406 10 5.5 2.0 645 475 605 62
DCX2 50P Petrol GK210 212 7 3.6 1.7 490 400 422 28
DCX2 50D Diesel LA178FP 296 5.4 3.5 1.3 540 440 540 47
