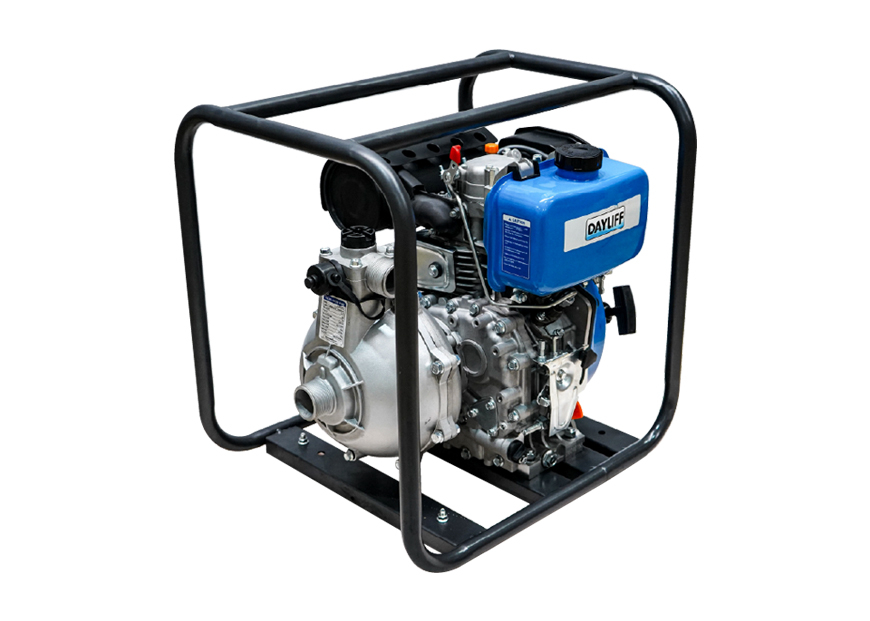

DC Engine Pump



The Dayliff DC range of self priming engines pumps are of fully portable design suitable for irrigation, dewatering and general pumping duties. All models feature open impellers suitable for pumping lightly silted water and a sturdy carrying and protection frame. Also included are quick couple hose connectors and suction strainers. Maximum suction is 8m at sea level, though this will be reduced at altitudes. For all pumps, the pump body and impellers are manufactured from high grade cast aluminium. ECONO models use different specification components and are recommended for light duties and shorter operating periods.

ENGINE
Two engine options are available as follows:-

Petrol
Proprietary air cooled, 4-stroke OHV single cylinder with transistorised ignition and oil alert.

Diesel
A high efficiency direct injection air cooled diesel engine.

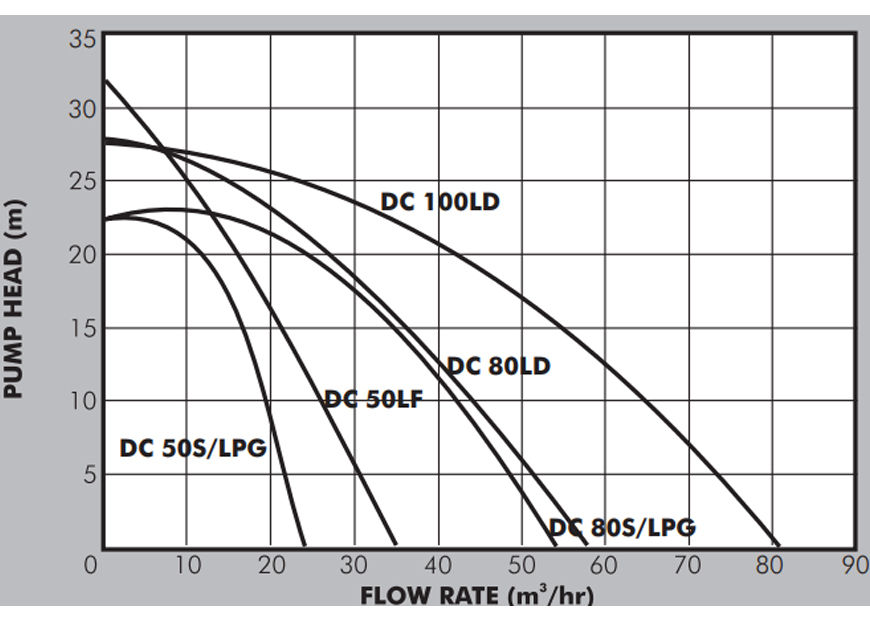

Note that performance curves for all engines relate to the engine governor set at maximum speed of 3600rpm to achieve maximum rated power output. To prolong engine life pumps should only be run under maximum power conditions for short periods and for extended duty the throttle setting should be reduced to approximately three-quarters power. Pump performance will then be reduced accordingly.

SPECIFICATIONS

Model Fuel Engine Fuel Inlet & Outlet (") Dimensions (mm) Weight (kg)
Type Capacity (cc) Max Power (HP) Tank (ltr) Consumption (l/hr) L W H
DC 50E/DC 50P Petrol LV210/GK210 208/210 7.0 3.6 1.7 2 475/450 375 375 23
DC 80P GK210 212 7.0
3 510 385 435 25
DC 80D Diesel LA178F 296 6.0 3.5 1.5 540 440 510 43
DC 100D LA186F 406 10.0 5.5 2.5 4 590 450 530 64
