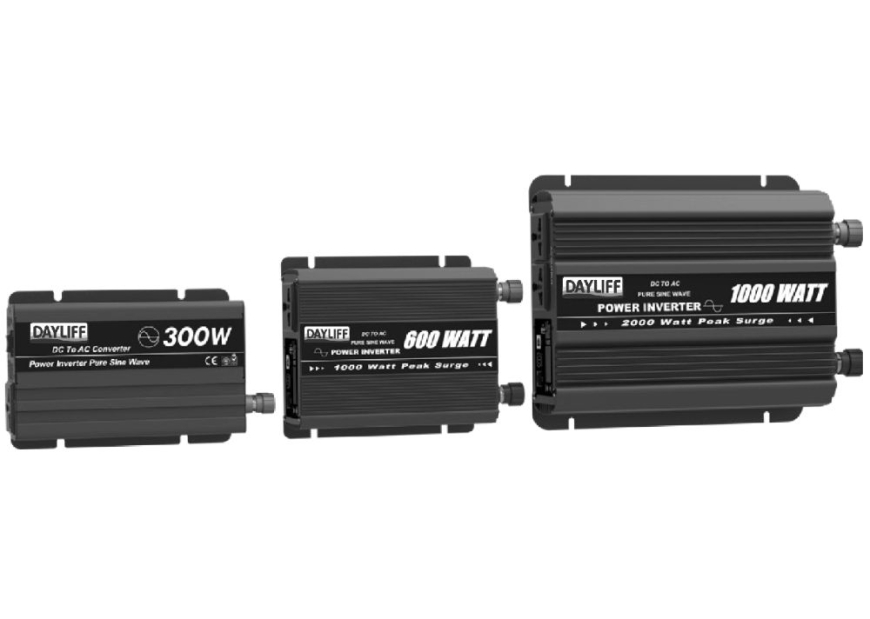

DVERTER power inverters are high specification, high quality products designed for inverting DC to AC power with applications for solar systems and vehicle supply. AC output is of the Pure Sinewave form and all units feature 'smart start for improved start up performance, dynamic DC Bus voltage regulation and soft-start technology for improved reliability. Other features include comprehensive overload protection, low/over voltage alarm, over temperature shut off and short circuit protection. Inverters are supplied with brackets for convenient installation.
OPERATING PARAMETERS
DC Input Voltage (Nominal/Range): -12V (10.5V-15V)
AC Output: -240V/50Hz
Working Temperature: Min- 0°C, Max 45°C,
Humidity: Min 20%, Max 90%
Efficiency: > 90%
AC Regulation: 8%
IP Rating: IP20
| Model |
DCV-300 |
DCV-600 |
DCV-1000 |
| Output Power |
300W |
600W |
1000W |
| Surge Capacity |
600W |
1200W |
2000W |
| Output Waveform |
Pure Sinewave |
| No Load Current Draw (A) |
0.4 |
0.5 |
0.6 |
| Battery Low Alarm |
10.5±0.5V |
| Battery Low Shutdown |
9.5±0.5V |
10±0.5V |
| Net Weight (kg) |
1.0 |
1.7 |
2.6 |
| Inverter Dimensions (HxWxD) mm |
205x125x61 |
291x220x83 |
