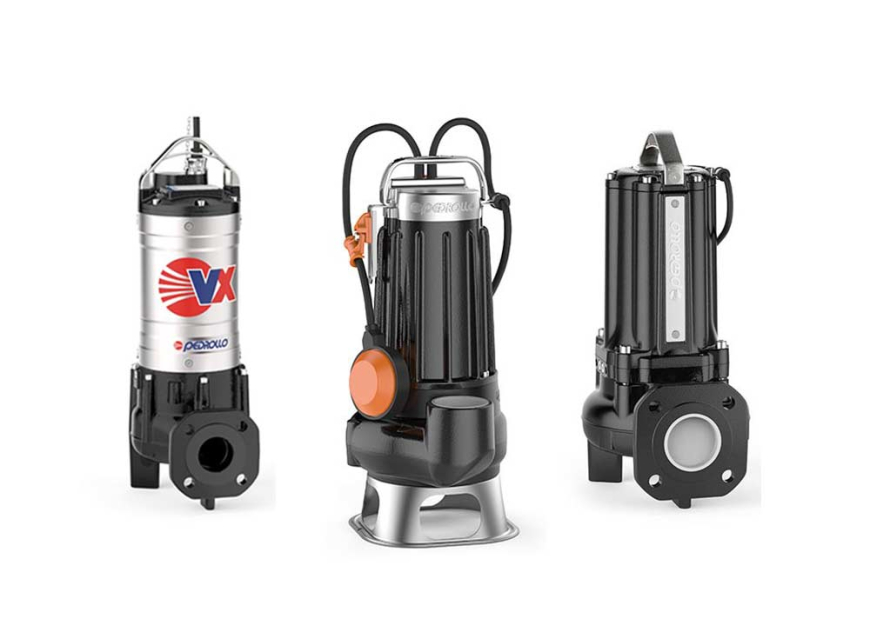

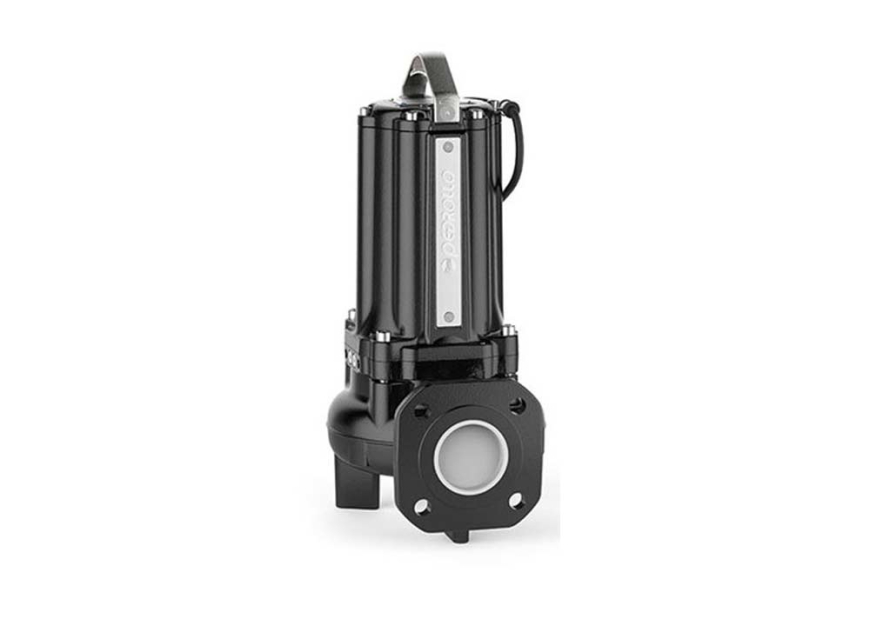

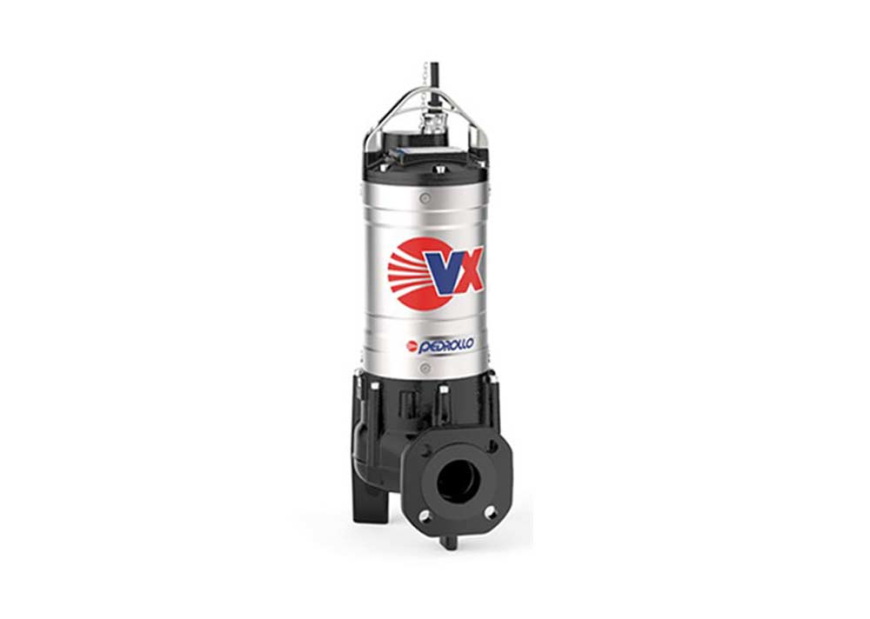

The VX/VXC range of submersible drainage pumps are designed to handle industrial waste water and sewage. The open type impellers make the pumps especially suitable for pumping water containing a high proportion of solid particles including threads and fibres.

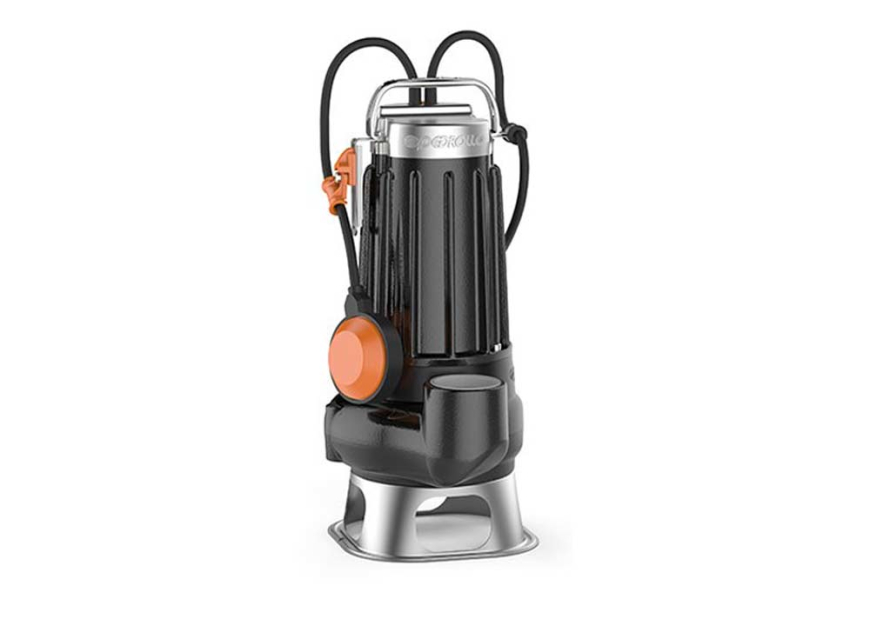

Material of construction is heavy duty cast iron for motor housing and pump body except VX 40/40 whose motor housing is made from AISI 304 stainless steel. All pumps are supplied with 10m neoprene cable and the VXCm15/45 also includes an integral float switch for low level control. Two configurations are available. VX/VXC for either portable or fixed sump applications and PVXC for sewage installations with discharge connection and guide bars provided.
MOTOR
Hermetically sealed induction motor designed for continuous duty provided the pump remains partially submerged (min 350mm). A control box is recommenced for the single phase models which should be connected to a fused supply. Three phase models requires a remote DOL starter.
Enclosure Class: IPX8
Insulation Class: F
Speed: 2900rpm
OPERATING CONDITIONS
Pumped liquid: Thin, chemically non-aggressive liquids, containing suspended particles up to the specified size.
Max. Fluid Temperature: +40°C
Max. Operating Depth: 10m

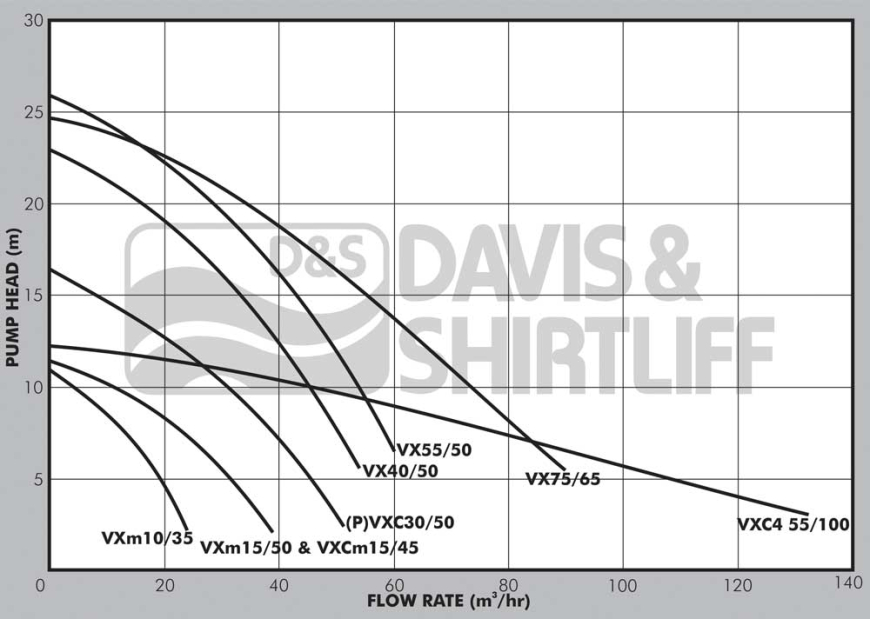

PUMP DATA
Model |
Motor |
Current (A) |
DN(") |
Solid Passages (mm) |
Dimensions (mm) |
Weight (kg) |
kW |
HP |
1x240V |
3x415V |
A |
B |
C |
H |
P min |
Ø min |
VXm10/35 |
0.75 |
1 |
4.8 |
|
1.5 |
40 |
|
95 |
148 |
406 |
500 |
500 |
14 |
VXm15/50 |
1.1 |
1.5 |
7.0 |
|
2 |
50 |
|
155 |
446 |
16 |
VXCm15/45 |
|
428 |
20 |
(P)VXC30/50 |
2.25 |
3 |
|
5.7 |
2.5 |
198 |
122 |
169 |
457 |
800 |
800 |
49 |
VX40/50 |
3 |
4 |
|
5.8 |
2 |
|
107 |
170 |
587 |
700 |
500 |
48 |
VX55/50 |
4 |
5.5 |
|
7 |
|
627 |
54 |
VX75/65 |
5.5 |
7.5 |
|
12.7 |
2.5 |
65 |
|
700 |
800 |
65 |
VXC455/100 |
4 |
5.5 |
|
9 |
4 |
100 |
|
228 |
165 |
806 |
1000 |
1000 |
132 |
