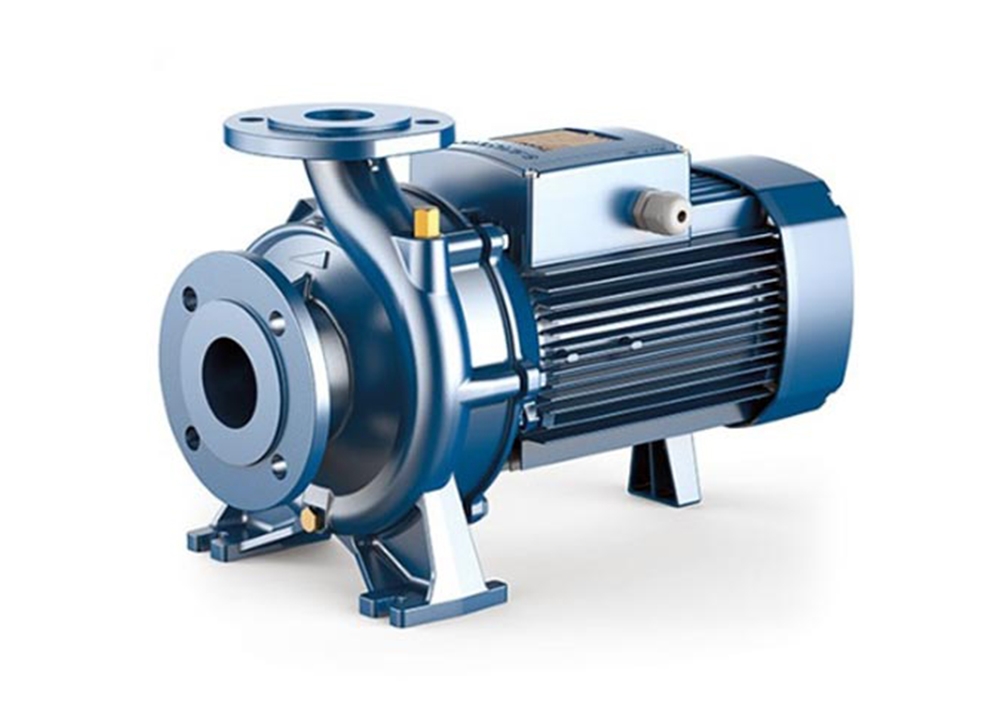

F Series



The PEDROLLO F Series range are high flow centrifugal pumps with close coupled motors and flanged inlet and outlet connections. The hydraulic ends are designed to the dimensions specified in the DIN 24255 standards thus providing interchangeability with other similar types of pumps whilst offering the cost, reliability and compactness advantages inherent in a close coupled design. They are particularly suitable for higher volume industrial applications and are of heavy duty construction to provide long life with continuous operation. The pumps are of back pull out design allowing dismantling without disconnection of the pump casing from the pipework.

Pump construction is cast iron body and back plate, brass alloy impeller and ceramic/graphite mechanical seal

MOTOR
The close coupled fan cooled TEFC induction motors are non overloading and designed for continuous duty. Single phase pumps may be connected directly to mains power through 10Amps MCB while a remote starter with thermal overload is necessary for three phase pumps.

Enclosure Class: IP44
Insulation Class: F
Voltage: 3x380-415V
Speed: 2900rpm

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Max. Fluid Temperature: +90º C
Max. Ambient Temperature: +40º C
Max. Suction Lift: 7m (at sea level)

Pump Data

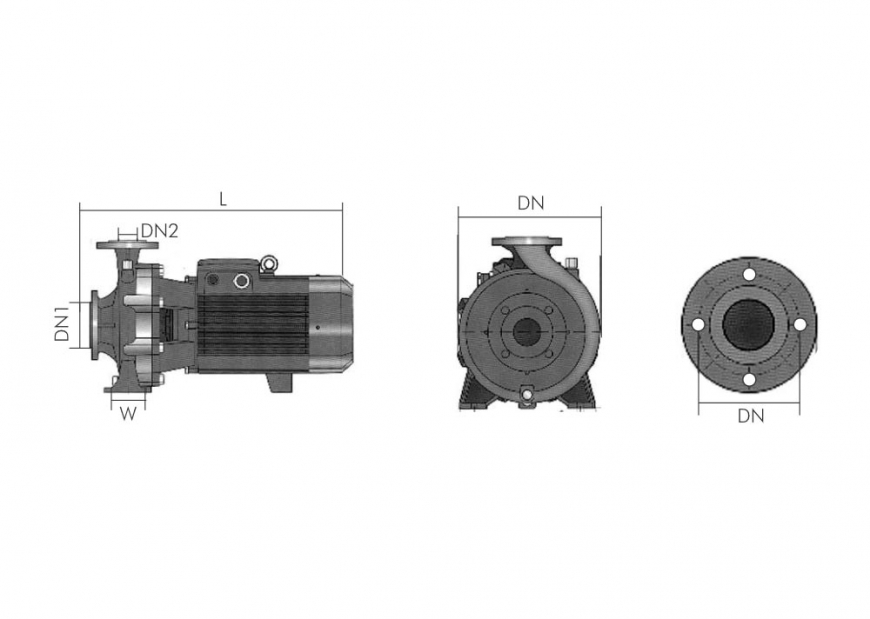

Model Power (kW) Current (A) Dimension (mm)      Weight (Kg)
DN1 DN2 L H W1 W2
F40/125B 1.5 4.5 65 40 421 252 244 210 32.4
F40/125A 2.2 5.2 441 32.6
F32/160A 3 7.3 50 32 448 292 240 245 38.7
F32/200C 4 10.3 469 340 273 46.3
F40/200B 5.5 12.6 65 40 535 277 265 53
F40/200A 7.5 15.6 59
F40/250B 11 23.5 606 405 329 320 104
F40/250A 15 30.5 701 120
F50/160A 7.5 15.5 65 50 535 340 273 265 57.6
F50/200C 11 23 616 360 316.5 100
F50/200A 18.5 34.5 711 127.2
F65/125A 7.5 16.5 80 65 557 340 292 280 63
F65/160B 11 23 620 360 295 100.2
