The DAYLIFF DID pump range are of non-self-priming, high efficiency in-line centrifugal design with a special application for pumping highly mineralised water especially in RO plant application. The pumps are of heavy-duty construction and designed for continuous duty in high pressure installations. Material of construction is Duplex SS2205 for the inlet and outlet chamber, seal base, pump sleeve and shaft while impellers and chambers are of Stainless Steel 904L. Pumps are water lubricated and are provided with a standard cartridge type mechanical seal and BSP internally threaded counter flanges.
MOTOR
The pumps are coupled to high efficiency IE3 totally enclosed fan cooled 2-pole motor complying with IEC standards and must be connected to an effective motor starter in accordance with local regulations.
Enclosure Class: IP55
Insulation Class: F
Voltage: 3x415V
Speed: 2900rpm
OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-flammable, non-combustible and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: - 15°C to + 70°C
Maximum Ambient Temperature: + 40°C

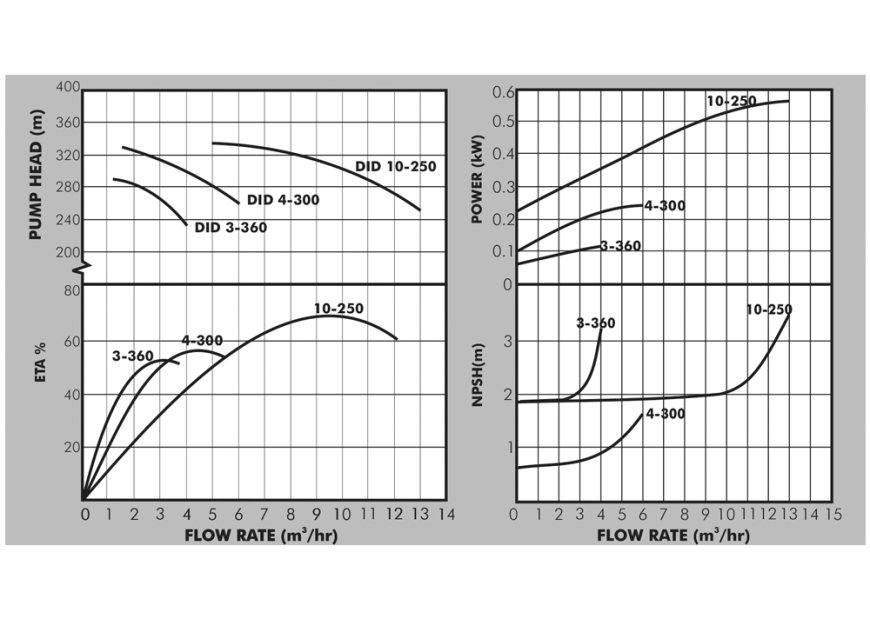

Maximum Suction Lift: According to the NPSH curve plus a safety margin of 0.5m
Maximum Operating Pressure: Up to 7.5kW - 21 bar, other - 30bar
Maximum Inlet Pressure: 3 bar
Water Quality @20°C Temperature: TDS- 35,000ppm, Chloride 20,000ppm
PUMP DATA
| Model |
Motor |
Nominal Current (A) |
Dimensions (mm) |
Weight (Kg) |
| kW |
HP |
DN |
B1 |
B2 |
D1 |
D2 |
| DID3-360 |
5.5 |
7.5 |
10.7 |
25 |
924 |
465 |
260 |
210 |
108 |
| DID4-300 |
7.5 |
10 |
14.5 |
32 |
1086 |
113 |
| DID10-250 |
15 |
20 |
28.1 |
40 |
1174 |
610 |
350 |
26 |
184 |
