DEB End Suction Centrifugal Water Pump

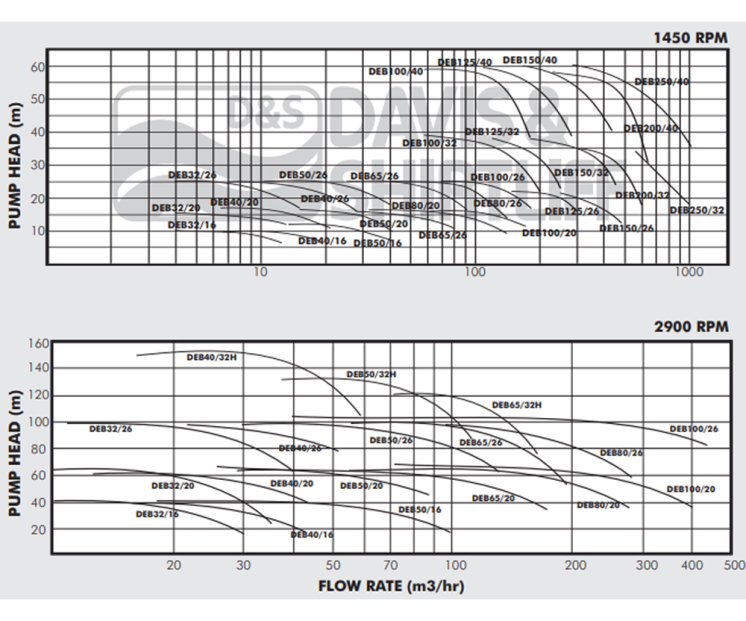

DEB End Suction Centrifugal Pump Performance Curves

Scan to Share

The Dayliff DEB range of end suction centrifugal pumps are rugged heavy-duty pumps designed for various water supply, irrigation and fire fighting duties in agricultural, commercial and industrial applications. The pumps feature gland packing seal for simple and economic maintenance, back pullout design enabling removal of the rotating element without disturbing the pipework connections and heavy duty bearings. Pumps feature enhanced hydraulic efficiency and are designed in accordance with DIN24255 and ISO 9908 standards, achieving a Minimum Efficiency Index (MEI) >0.7 complying with EU MEI requirements

A wide range is available and pumps can be modified for specific duties by adjustment of the impeller diameter which must be done with reference to the particular pump curve. Motors should be selected according to the pump speed and impeller diameter and mounted together with the pumps on a base frame with coupling. The pumps are also suitable for belt drive by either electric motor or a diesel engine. Pump construction is heavy duty cast iron casing with stainless steel shaft and bronze impeller.

Max Operating Pressure: 16Bar
Temp Range: -10°C to +85°C

PUMP DIMENSIONS

Model	Shaft Module	Discharge	Suction	Full Impeller Max Power Absorbed (kW)		DimeNsions (mm)					Net Weight (kg)
Model	Shaft Module	Discharge	Suction	1450rpm	2900rpm	a	f	h1	h2	n1	Net Weight (kg)
DEB32/16	25	32	50	0.75	5.5	80	360	132	160	240	35
DEB32/20	25	32	50	1.5	11	80	360	160	180	240	47
DEB32/26	25	32	50	2.2	18.5	100	360	180	225	320	58
DEB40/16	25	40	65	1.1	11	80	360	132	160	240	34
DEB40/20	25	40	65	2.2	15	100	360	160	180	265	45
DEB40/26	25	40	65	4	30	100	360	180	225	320	61
DEB40/32H	25	40	65	7.5	55	125	470	200	250	345	101
DEB50/16	25	50	65	2.2	15	100	360	160	180	265	39
DEB50/20	25	50	65	3	22	10	470	160	200	265	49
DEB50/26	25	50	65	5.5	37	100	470	180	225	320	68
DEB50/32H	35	50	65	-	75	125	470	225	280	345	105
DEB65/20	25	65	80	4	37	100	470	180	225	320	55
DEB65/26	35	65	80	7.5	75	100	470	200	250	360	87
DEB65/32H	35	65	80	-	110	125	470	225	280	400	111
DEB80/20	35	80	100	7.5	45	125	470	180	250	345	76
DEB80/26	35	80	100	11	75	125	470	200	280	400	95
DEB100/20	35	100	125	7.5	55	125	470	200	280	360	84
DEB100/26	35	100	125	15	110	140	470	225	280	400	102
DEB100/32H	35	125	100	-		140	470	250	315	400	134
DEB100/40	45	100	125	55		140	470	280	355	500	174
DEB125/26	35	125	150	22		140	530	250	355	400	115
DEB125/32	45	125	150	45		140	530	280	355	500	163
DEB125/40	45	125	150	90		140	530	315	400	500	181
DEB150/26	45	150	200	30		160	530	250	355	450	148
DEB150/32	45	150	200	45		160	530	280	400	550	170
DEB150/40	45	150	200	110		160	530	315	450	550	209
DEB200/32	55	200	250	75		180	670	315	480	600	251
DEB200/40	55	200	250	132		180	670	335	480	600	295
DEB250/32	55	250	300	90		220	691	335	520	660	311
DEB250/40	55	250	300	160		220	682	400	560	660	390
