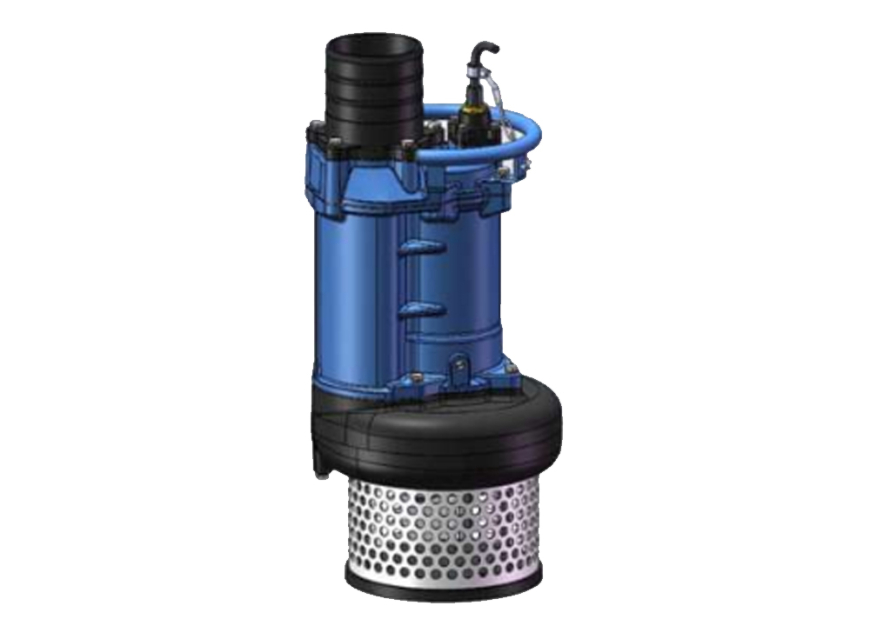

The Dayliff DWM range of heavy-duty slurry pumps are of robust design for high flow drainage applications in harsh conditions in flooded areas, construction sites, mines, quarries etc. Pumps are fitted with a ductile iron semi-open cutter impeller that can handle slurries and sewage containing solid particles sized as indicated. Pump construction is heavy-duty cast iron pump body and motor casing and they are fitted with double mechanical seals, NBR oil seal and stainless steel strainer. The pumps are designed for free standing installation and are supplied complete with 8m of H07RNF cable.
MOTOR
Pumps are supplied with dry-type 4-pole motors designed for continuous duty fitted with built-in thermal protection. The motors require a remote DOL starter.
Enclosure Class: IP68
Insulation Class: F
Voltage: 3X415V
Speed: 1500rpm
OPERATING CONDITIONS
Pumped Liquids: Thin, chemically non-aggressive liquids, containing suspended particles up to the specified size.
Maximum Liquid Temperature: +40°C
Maximum Immersion Depth: 10m
PUMP DATA
| Model |
Power |
Current (A) |
Max Particle Size(mm) |
Dimensions (mm) |
Weight (Kg) |
| kW |
HP |
Ød |
A |
D |
B |
H |
W1 |
| DWM40 |
3 |
4 |
6.7 |
15 |
150 |
386 |
368 |
864 |
787 |
285 |
113 |
| DWM75 |
5.5 |
7.5 |
11.7 |
20 |
200 |
447 |
410 |
957 |
809 |
295 |
147 |
| DWM120 |
9 |
12 |
19.5 |
30 |
479 |
413 |
938 |
789 |
250 |
192 |
