The DAVEY XF range of booster pumps are of centrifugal single impeller design with high specification electric motors. They are particularly suited for water transfer in domestic, agricultural and industrial applications due to their high grade construction and continuously rated motors.

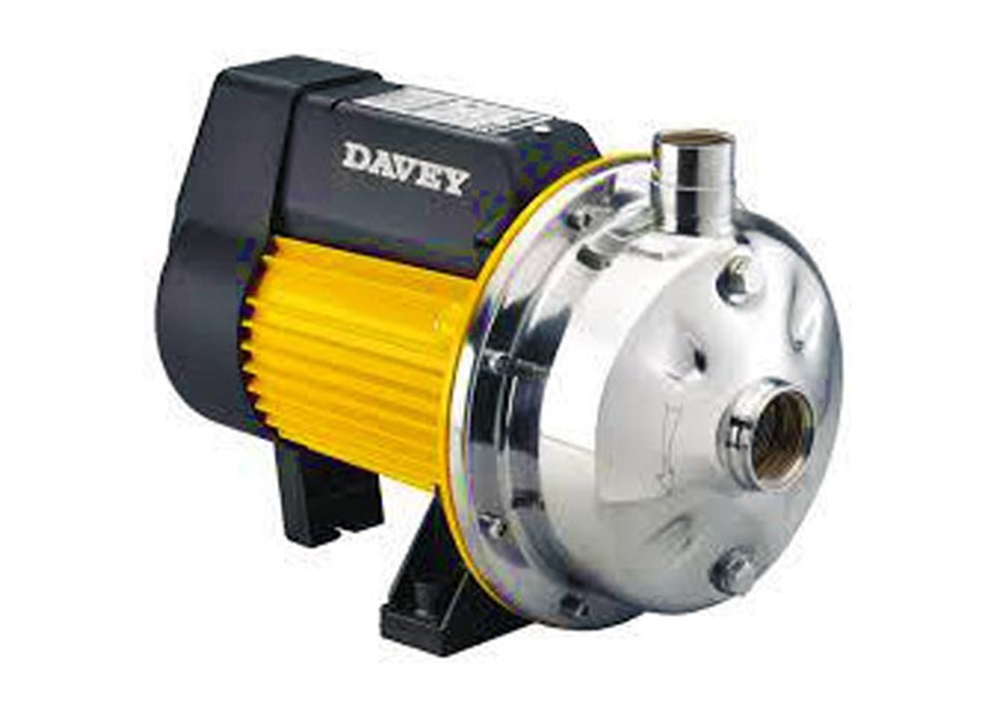

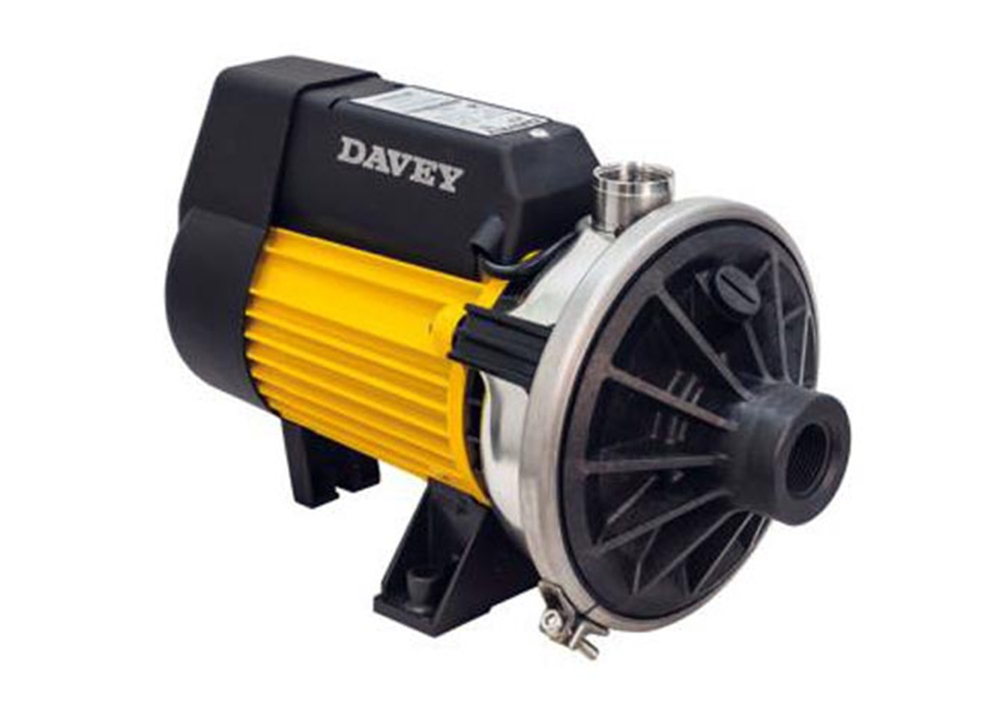

Construction material for the XF171 & XF221 is glass filled noryl for the pump casing and glass filled polycarbonate for the impeller. XF211SS and XF311SS models use 304 stainless steel for all pump components including the casing and impeller.
MOTOR
The pump includes an integral Davey TEFC permanent split capacitor type motor specified to match the hydraulic load. The motor is provided with an in-built thermal cutout for overload protection and can be connected directly to the mains power supply through a 10 Amp fuse or MCB.
Enclosure Class: IP55
Insulation Class: F
Voltage: 1x240V
Speed: 2900rpm
OPERATING CONDITIONS
Pumped liquid:Thin, chemically non aggressive liquids without solids or fibres.
Max Water Temperature: +50°C ( XF171 and 221) 80°C (XF221/311SS)
Max Ambient Temperature: +50°C
Max Suction Lift: 7m (at sea level)
PUMP DATA
Model |
Power(kW) |
Max Current(A) |
Inlet BSP |
Outlet BSP |
Weight(kg) |
Dimensions (mm) |
A |
B |
C |
D |
E |
H |
I |
J |
L |
N |
XF 171 |
0.5 |
2.8 |
1"F |
1”M |
6.7 |
215 |
325 |
- |
126 |
- |
- |
100 |
193 |
- |
- |
XF 221 |
0.7 |
4.5 |
1"F |
1"M |
8.3 |
215 |
350 |
- |
126 |
- |
- |
100 |
193 |
- |
- |
XF 211SS |
0.9 |
5.4 |
1¼"F |
1"F |
11 |
232 |
343 |
135 |
92 |
52 |
124 |
108 |
213 |
39 |
120 |
XF 311SS |
1.1 |
7.3 |
1¼"F |
1"F |
14.5 |
260 |
410 |
176 |
97 |
51 |
139 |
121 |
240 |
39 |
140 |
