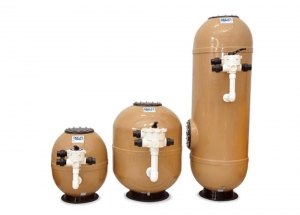

Superflo Filters



The DAYLIFF Superflo range of swimming pool filters are efficient and economical products suitable for domestic pool applications. Three models are available offering the following features:-

  • Roto moulded corrosion proof polythelene plastic construction for long life.
  • Simple to operate side mounted six position multi-port control valve.
  • Screwed top cover for easy access to the filter media.
  • Carefully designed internal collector piping giving superior flow performance.
  • High grade Dayliff silicon sand media for exceptional filtration efficiency.

Dayliff Superflo filters are tried and tested over many thousands of installations and have proved to provide reliable and effective pool filtration. With a DAYLIFF Superflo filter sparkling clear water is assured at all times.

OPERATING PARAMETERS

Model Rated Flow (m³/hr) Pump Options Pool Capacity (Litres) Recommended Piping Size   Filter Area (m²) Dimensions (mm) MPV Valve Size Max Pressure (Bar) Weights (kg)
Quality kW Light Use Normal Use Heavy Use Suction Delivery H D Media Nett Gross*
Superflo Q120 10 QP3 0.6 100,000 80,000 60,000 1½” 1½” 0.24 560 560 1½” 1.1 120 13 155
Superflo Q160 12 QP4 0.75 120,000 96,000 72,000 2” 1½”             0.3 720 630 1½” 1.2 160 19 229
Superflo Q200 15 QP6 1.1 150,000 120,000 90,000 2” 2”           0.39 710 710 1½” 1.2 200 22 296

 * Includes media and water
