SPIN FLOW SWITCH
An in-line pump controller for automatic operation by flow sensing and suitable for boosting from headertanks. Features include:-
- Starts pump when flow is sensed (minimum 2.4 litres/min) and stops when flow ceases
- Pump stop time adjustable between 10 to 180 secs
- System is un-pressured in no flow condition so eliminating pump cycling
Max Motor Size: 1.5kW
Max Operating Pressure: 10 Bar
Max Water/ Ambient Temps: 50°C/55°C
Dimensions (L/W/H): 142/118/112mm
Max Current: 12A
Connection: 1"M
Protection:IP65

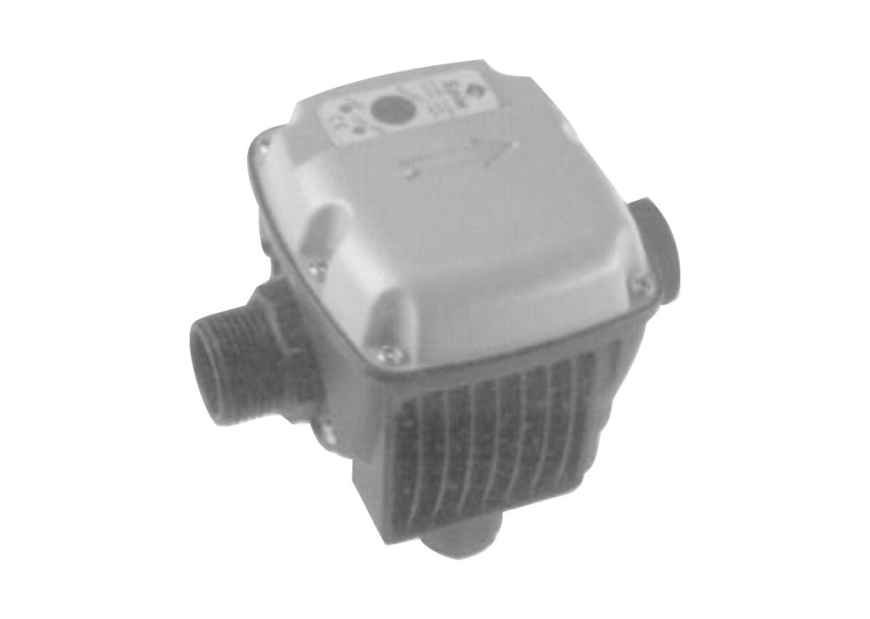

PRESSURE SWITCH
Adjustable pressure switch for pressure control of pumps featuring normally closed brass closed brass alloy contacts and tear resistance cable glands
| Type |
Pressure Range (Bar) |
Factory Setting (Bar) |
Differential (Bar) |
Rated Current (A) |
| PM/5 |
1-5 |
1.4-2.8 |
0.6-2.3 |
16 |
| PM/12 |
3-12 |
5-7 |
1.5-5 |

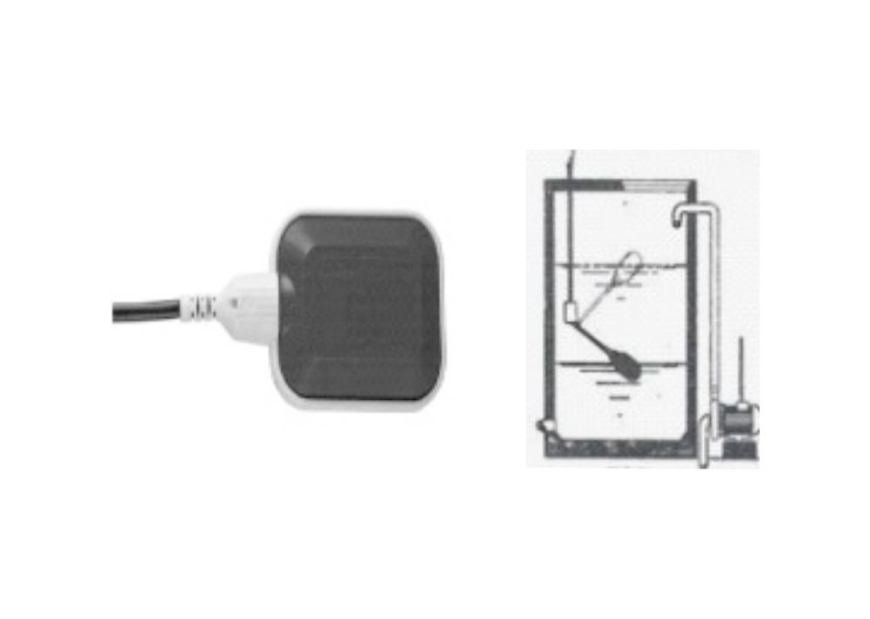

PADDLE FLOAT SWITCH
Paddle type float switch with weight and 3m PVC cable. The switch is suitable for both high level and low level control according to the wiring connections.
Max Current: 8A
Max Working Temp: 60°C
Max Depth: 40m
Protection: IP68

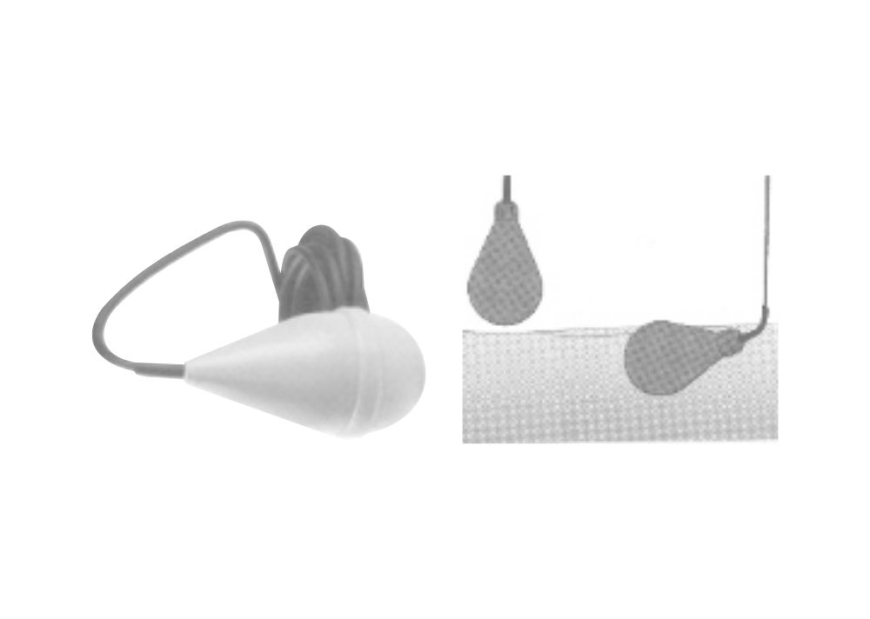

BULB FLOAT SWITCH
Bulb float switches are suitable for dirty and waste water applications and are made from non corroding PVC and are supplied with 5m cable. Applications can be for high or low level control according to the wiring connections
Max Current: 8A
Max Working Temp: 50
Max Depth: 40m
Protection: IP68
