DSD 3

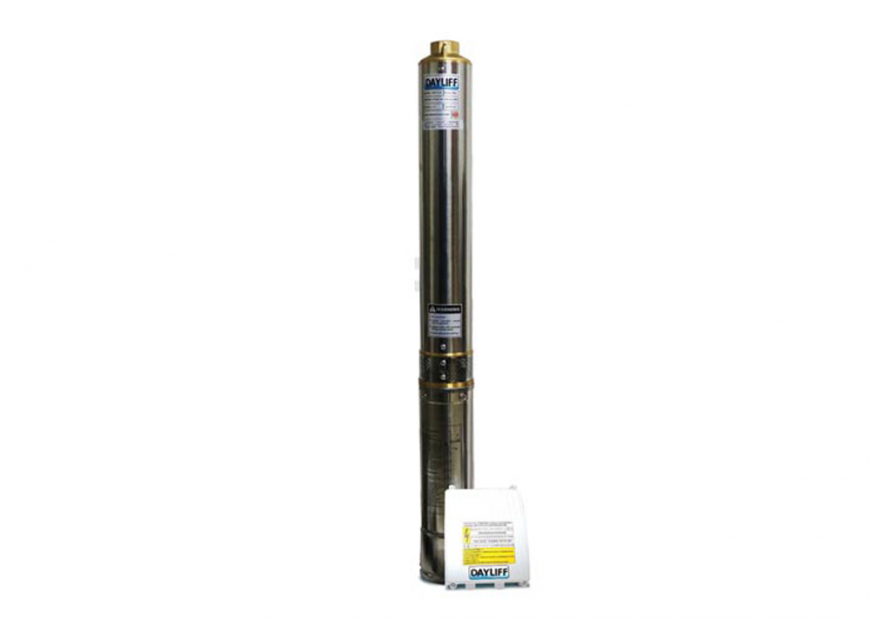

Dayliff DSD range of Submersible Multistage centrifugal pumps are specially designed for domestic and small scale water supply from wells and boreholes. Material of construction include polycarbonate impellers and diffusers, cast iron delivery and suction chambers and AISI 304 stainless steel pump housing, shaft and shaft coupling. These quality materials together with the polycarbonate impellers provide the pumps with excellent sand handling capabilities for a longer life. DSD 3/7, 3/10, 3/13 and 3/18 are supplied complete with 30m cable and control box.

Motor
The pump is coupled to a sealed liquid cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Single phase motors should be supplied with purpose designed Dayliff SCM control boxes for operation and protection against overload, dry running and over/under voltage. Three phase motors require a remote DOL starter; A DAYLIFF SCT electronic Pump Controller is recommended for comprehensive pump control including low level, motor overload and irregular power supply protection.

Enclosure Class: IP68
Insulation Class: B
Speed: 2850rpm

OPERATING CONDITIONS
Pumped liquid
: Thin, clean, chemically non-aggressive liquids with a max. sand content of 0.25%
Max. Water temperature: +35°C
Max. immersion depth: 150m
Min. borehole diameter: 110m

PUMP DATA

Model Power Voltage(V) Current (A) IStart / I DN (") Dimensions (mm) Weight (kg)
kW HP A D
DSD 3/7 0.37 0.5 1x240 3.7 4 410 717 10
DSD 3/10 0.55 0.75 4.7 517 861 12
DSD 3/13 0.75 1 6.2 568  920  14
DSD 3/18 1.1 1.5 8 673 1065 17
DSD 3/30 2.2 3 15 1047 1564 27
3x415 6 7 1588 25
DSD 3/40 3 4 8 1341 1923 32
DSD 3/50 4 5.5 10 1604 2261 38
