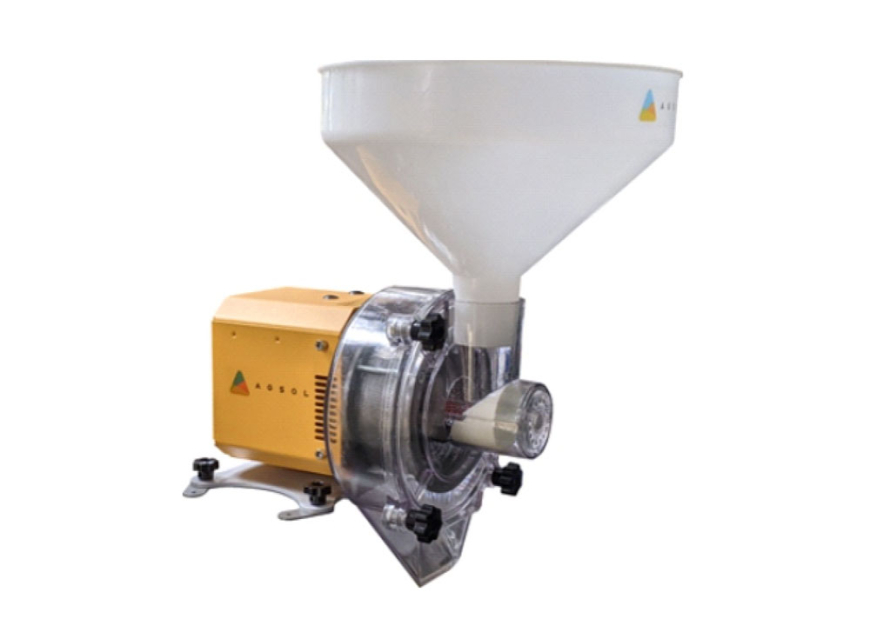

Agsol MicroMill is an efficient and dependable electric hammer mill used for processing a wide range of dried grains including maize, sorghum and millet or tubers like cassava to provide fine flour for domestic consumption through to coarse animal feed. Fitted with a brushless DC motor with smart electronic controls, the mill features maximum efficiency, ease of use and maintenance free operation. The mill can be powered from solar, grid or rechargeable batteries with different supply options available as follows:
- Hammer Mill AC Kit: Supplied with single phase 220-240V AC-DC power adaptor.
- Hammer Mill Solar Kit: Supplied with any mix of charge controller, battery and/or solar panels. The standard solar package includes a choice of either a 50Ah 24V DLID battery or an 18Ah 48V lithium-ion battery, along with a 24V/48V MPPT charge controller. A 700W PV module is available as an optional add-on and is priced separately. Battery, PV capacity can be adapted to meet customer requirements.
SPECIFICATION
| Production Capacity (Maize Flour) |
55kg/h ± 10% |
| Production Capacity (Chicken Feed 6mm) |
250 kg/hr |
| Holding Capacity (Standard Hopper) |
5kg |
| Screen Size Available |
6mm,3mm, 1.5mm, 1.2mm, 1mm |
| Motor Rating/Power Consumption |
1,000W/800W |
| Input Voltage Nominal/ Range |
46 - 55 VDC |
| Rated Spindle Speed |
12,000 RPM |
| Dimensions LxWxH |
30x21x50cm |
| Machine Weight |
6.5kg |
