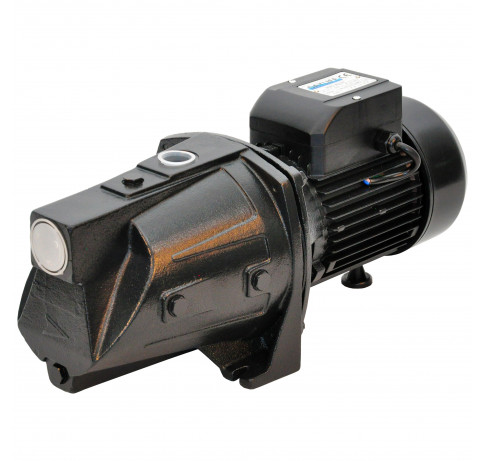

The Dayliff DDJ Centrifugal jet type pumps is specifically designed for all small scale domestic and commercial water supply uses. It features an integral ejector unit to provide highly effective self priming performance. The pump body is made from cast iron, the ejector and impeller from engineering plastic.
Pumps are close coupled to reliable TEFC electric motors designed for continuous operation and are provided with a thermal cutout to protect against electrical overload. They can be connected directly to the mains power supply through a 10A fuse or MCB.
|Pumped Liquid||Thin, clean, chemically non-aggressive liquids without solid particles or fibres|
|Maximum Fluid Temperature||+50 C|
|Maximum Ambient Temperature||+40 C|
|Maximum Suction Lift||9m at sea level|
|Dimensions - DN1||1.25"|
|Dimensions - DN2||1"|
|Dimensions (mm) - L||515|
|Dimensions (mm) - H||218|
|Dimensions (mm) - W||209|
