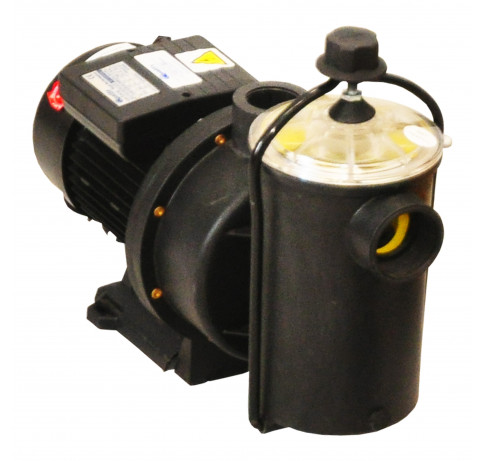

The Dayliff range of pool pumps are rugged and reliable products suitable for all swimming pool and spa applications. Features include an extra large strainer basket, transparent strainer cover with a sturdy, easy removable clamp and a non- overloading closed impeller. Pump construction is glass filled thermo-plastic throughout.
All pumps incorporate a TEFC motor with built-in thermal overload protection. The motor can be connected directly tomains electrical supply, though 10A fuse or MCB protection is required.
Standard Voltage: 1x240V
Enclosure Class: IP54
Insulation Class: F
Pumped Liquid: Thin, clean, chemically non-aggressive liquids, without solid particles or fibres.
Max. Ambient Temperature: +40°C
Max. Water Temperature: +50°C
|Model||Power||Max Current (A)||Weight (kg)|
|Pumped Liquid||Thin, clean, chemically non-aggressive liquids, without solid particles or fibres.|
|Maximum Fluid Temperature||+50C|
|Maximum Ambient Temperature||+40C|
|Dimensions & Weights|
|Dimensions (mm) - L||550|
|Dimensions (mm) - W||290|
