  • DAYLIFF DX 500

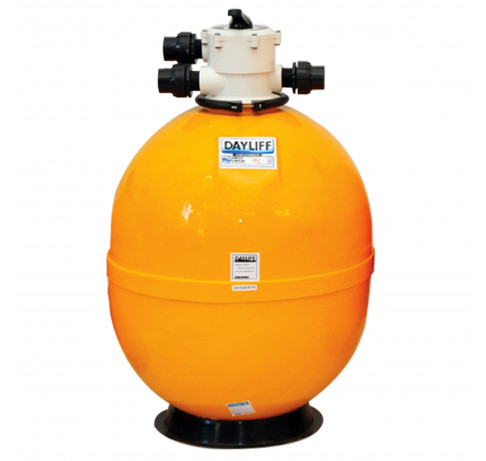

DAYLIFF DX 500

Available

Excellent Swimming Pool Filters

Manufactured by Dayliff

KSh 58,000

Price is inclusive of 16% VAT

The DAYLIFF 'DX' filter range is a comprehensive selection of swimming pool filters suitable for both domestic and light institutional pool applications. Combining the latest filtration technology with nearly twenty years of production experience the range offers outstanding reliability, longevity, performance and value. Five models in different sizes are available, all providing the following features:-

  • Elegant moulded filter bodies of non-corroding GRP construction for strength and indefinite life.
  • Simple to use flange connected six-position multiport valves with union connections. The flange arrangement greatly simplifies installation and media replacement as well as providing a secure watertight seal.
  • Specially designed internal collector laterals providing maximum filtration and backwashing efficiency and minimal media loss.
  • High-grade silica sand media for exceptional filtration performance.
It must be remembered that the most important aspect of a pool's appearance is the quality of its water. The key to this is efficient filtration and a pool's filter is the one piece of equipment where compromise does not pay. DAYLIFF 'DX' filters are quality products which have been carefully designed to combine the highest standards of performance with outstanding reliability and ease of operation. With a DAYLIFF filter clean, sparkling water is assured at all times.

Operating Parameters
Model DX500
Rate Flow (m3/hr) 10
Pump Options - Type Leader, SPP 50M
Pump Options - Power, kW 0.33
Pump Options - Quality QP3
Pump Options - Power, kW 0.6
Pool Capacity (litres) - Light Use 100000
Pool Capacity (litres) - Normal Use 80000
Pool Capacity (litres) - Heavy Use 60000
Recommended Piping Size (Suction) 1.5"
Recommended Piping Size (Delivery) 1.5"
Dimensions & Weights
Model DX500
Filter Area 0.07 sq. metres
Dimension(mm) H 830
Dimension(mm) D 520
MPV Valve Size 1 1/2"
Pressure (Bar) - Test 4.5
Pressure (Bar) - Working 3
Weight (kg) - Net 13
Weight (kg) - Gross 170
  • Elegant moulded filter bodies of non-corroding GRP construction for strength and indefinite life.
  • Simple to use flange connected six-position multiport valves with union connections. The flange arrangement greatly simplifies installation and media replacement as well as providing a secure watertight seal.
  • Specially designed internal collector laterals providing maximum filtration and backwashing efficiency and minimal media loss.
  • High-grade silica sand media for exceptional filtration performance.
