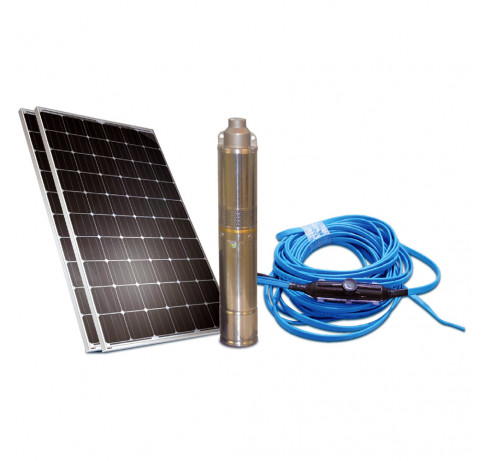

SUNFLO-A 600H Solar Pumping System

Available

Quality Solar Pumping System

Manufactured by Dayliff

KSh 133,200

Solar pumping is now firmly established as the technology for water supply in remote off-grid applications and also as the costs reduce increasingly for general pumping duties. Dayliff have been leaders in the technology since the birth of the industry and today offer a huge range of options for every solar pumping requirement imaginable. Particularly a range of competitive, high specification solar pumping systems have been developed for smaller scale applications which are based on robust submersible solar pumps specially designed for PV powered water supply from wells and boreholes. Together with the pump all systems include:-

  • The appropriate specifications and number of Grade 1 PV modules with connectors for simplified installation
  • Submersible drop cable and joint together with 10m module connection cable
  • DC solar isolator with MCB control provided for module isolation
  • Safety rope and HDPE pipe connectors

Module supports and piping are not included. The various systems offered give a wide range of duties, indicative performance being given. Full details of pump performance and specification is given in the Dayliff Product Manual and should be referred to when selecting equipment.

SUNFLO-S
Positive displacement type of three chamber diaphragm design. They are manufactured from high quality engineering plastics with plastic casings for the 150 model and stainless steel for the 300. Pumps can be connected directly to a 24V PV power supply for daytime only pumping or through a charge controller connected to batteries for extended daily operation.

SUNFLO-A
All models are of helical rotary screw stainless steel design for high efficiency and feature an inbuilt controller that gives operating protection for direct connection to the PV modules. All models are of narrow 3” diameter specifically designed for boreholes.

SUNFLO-B
Higher specification pumps of both helical rotor and centrifugal type that are provided with separate controllers that feature MPPT technology to maximise pumping output as well as providing electrical protection and indicator lights giving operating status. Battery connection is also available for extended daily pumping.

System Options

Pump ModelIndicative PerformanceInput VoltageMotor Rating WattsPeak Voltage (V)Open Circuit Voltage (Voc)PV ModulesCable Length 2.5mm2Outlet Size
SUNFLO-S 1501m3/day at 30m2412024< 501x20030m½"
SUNFLO-S 3003m3/day at 60m243002x200W60m¾"
SUNFLO-A 150H2m3/day at 30m24150≥301x200W30m
SUNFLO-A 270H3m3/day at 50m36270≥45< 1002x200W50m
SUNFLO-A 600H4m3/day at 70m48600≥60< 1004x200W70m
SUNFLO-B 120H3m3/day at 30m24120≥30< 501x200W30m
SUNFLO-B 500C6m3/day at 40m48500≥60< 5004x200W40m1"
SUNFLO-B 1000C12m3/day at 70m1101000≥112< 2008x200W70m1¼"
PV MODULE DATA
Peak Voltage (V) 48
Open Circuit Voltage (V) <100
PV Modules 4x200
Pump Information
Model SUNFLO-A 600H
Indicative Performance 4m3/day at 70m
Motor Rating (W) 600
Input Voltage (V) ≥60
Outlet 3/4"
Cable Length (2.5mm sq) 70m
