  • Pedrollo Top 2

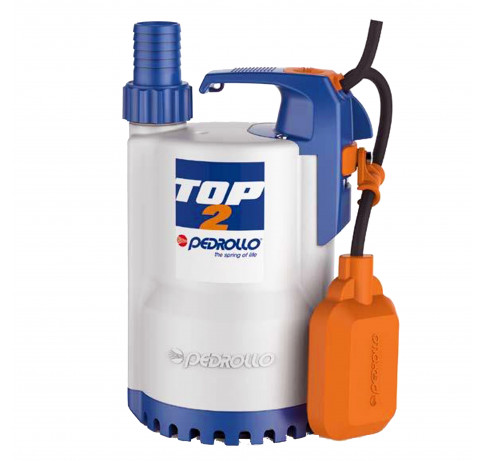

Pedrollo Top 2

Available

Multi Purpose Drainage Pump

Manufactured by Pedrollo

KSh 22,800

Price is inclusive of 16% VAT

The PEDROLLO TOP range are centrifugal submersible pumps with particular applications for light emptying and drainage duties, water transfer and fountains. Various specifications are available, TOP with an open centrifugal impeller for water containing light silt loads, TOP VORTEX with a vortex impeller suitable for dirty waters containing higher levels of suspended solids and TOP MULTI a multi-stage closed impeller pump for water transfer and well applications. An important feature of the design is excellent motor cooling performance due to the jacketed motor design enabling the pumps to operate continuously whilst partially submerged. Other innovative features include double mechanical seals with intermediate oil chamber for total motor protection and simple design for ease of maintenance. Pump construction is fibreglass reinforced technoplastic external casing, suction base and impeller and an external float with built-in switch is provided to automatically control pump starting and stopping. 10m of Neoprene cable is supplied for TOP multi, while all the others are supplied with a standard 5m cable.

MOTOR
Pumps are provided with built-in liquid cooled non-overloading induction motors designed for continuous operation. A thermal cut-out is provided in the motor windings to protect against pump overload and the pump can be connected directly to the mains power supply through a 10amp fuse or MCB.

Motor
Enclosure Class IP68
Voltage 1 X 240V
Insulation Class F
Speed 2900rpm
Operating Conditions
Pumped Liquid Thin, clean, chemically non aggressive liquids without abrasive particles or fibres
Maximum Fluid Temperature +40C
Max Partical Size 10
Maximum Suction Lift 7m (at sea level)
Maximum Operating Depth 3M
Pump Information
Model Top 2
Power (kW) 0.37
Dimension(mm) DN 1 1/4"
Maximum Operating Current (A) 2.0
Dimension(mm) D 14
Dimension(mm) A 152
Dimension(mm) H 257
Dimensions (mm) - H 257
Weight (kg) 5
