  • Pedrollo CPm158

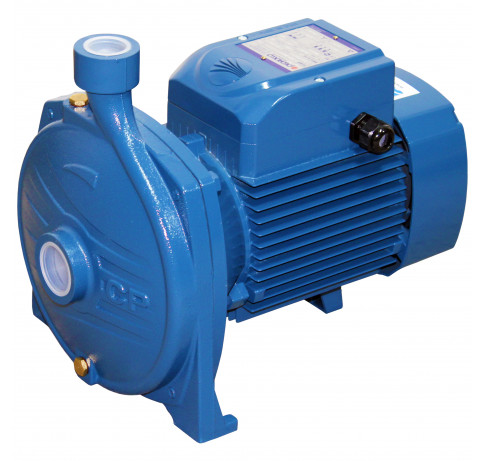

Pedrollo CPm158

Available

Quality Booster Pump

Manufactured by Pedrollo

KSh 26,700

KSh 28,100

Price is inclusive of 16% VAT

The PEDROLLO CP range are non self-priming closed impeller pumps with integral motors. They are efficient, quiet and rated for continuous duty making them suitable for water boosting and transfer in a variety of domestic, industrial and agricultural applications. They are also particularly suited to automatic pressurised supply using either a surge tank or 'Presscontrol' unit.

Pump construction material is cast iron for the casing and brass alloy for impellers.

Pumps can be installed for manual or automatic control using either the unique ‘Presscontrol’ unit or a pressure tankand switch. Cpm 158 is available with the ‘Hydrofresh’ option combines a 24L horizontal diaphragm tank, pressureswitch and gauge with pressure settings of 1.8Bar for pump start and 3.2 ar for pump stop

MOTOR
Pumps are close coupled to a Pedrollo brushless TEFC induction motor designed for continuous operation. Single phase motors are provided with a thermal cutout in the windings to protect against electric and mechanical overload and can be connected directly to the mains power supply through a 10Amp fuse or MCB. Three phase motors require remote DOL starter protection according to local regulations.

Motor
Enclosure Class IP44
Voltage 1 X 240V
Insulation Class F
Speed 2900rpm
Operating Conditions
Pumped Liquid Thin, clean, chemically non aggressive liquids without abrasive particles or fibres
Maximum Fluid Temperature +90C
Maximum Ambient Temperature +40C
Maximum Suction Lift 7m (at sea level)
Pump Information
Model CPm158
Power (kW) 0.75
Maximum Operating Current (A) 5.8
Dimensions (mm) - DN1 1"
Dimensions (mm) - DN2 1"
Dimension(mm) A 540
Dimension(mm) B 225
Dimension(mm) C 585
Dimensions (mm) - L 285
Dimensions (mm) - H 240
Dimensions (mm) - H1 92
Dimensions (mm) - W 160
Weight (kg) 19.9
OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Max. Fluid Temperature: +90° C
Max. Ambient Temperature: +40° C
Max. Suction lift: 7 m (at sea level).
