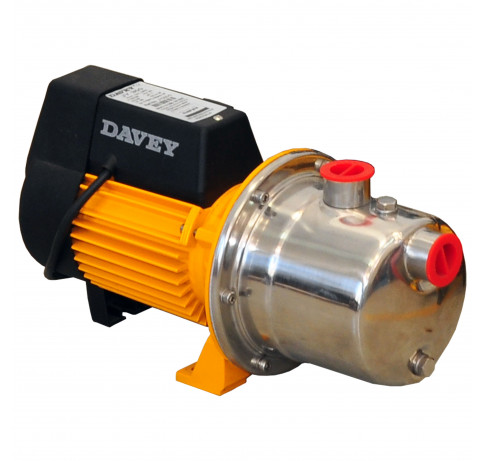

The DAVEY JY Pump is a single stage self priming centrifugal pump suitable for small domestic, irrigation and water transfer applications. A large pump chamber with jet assisted suction design provides improved suction performance and a high specification motor allows for continuous operation.
All pump components are made from 304 stainless steel for strength, long life and corrosion resistance.
MOTOR
The pump includes a close coupled Davey TEFC permanent split capacitor type motor specified to match the hydraulic load. The motor is provided with a built-in thermal cutout for overload protection and can be directly connected to the mains power supply through a 10Amp fuse or MCB.
| Motor | |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Speed | 2900rpm |
| Operating Conditions | |
| Pumped Liquid | Thin, clean, chemically non aggressive liquids without abrasive particles or fibres |
| Maximum Fluid Temperature | +45C |
| Maximum Ambient Temperature | +55C |
| Maximum Suction Lift | 7m (at sea level) |
| Maximum working pressure | 6 Bar |
| Pump Information | |
| Model | JY350 |
| Power (HP) | 0.7 |
| Power (kW) | 0.53 |
| Maximum Operating Current (A) | 2.5 |
| Weight (kg) | 6 |
