  • Dayliff Growatt 5000VA Multifunction Inverter

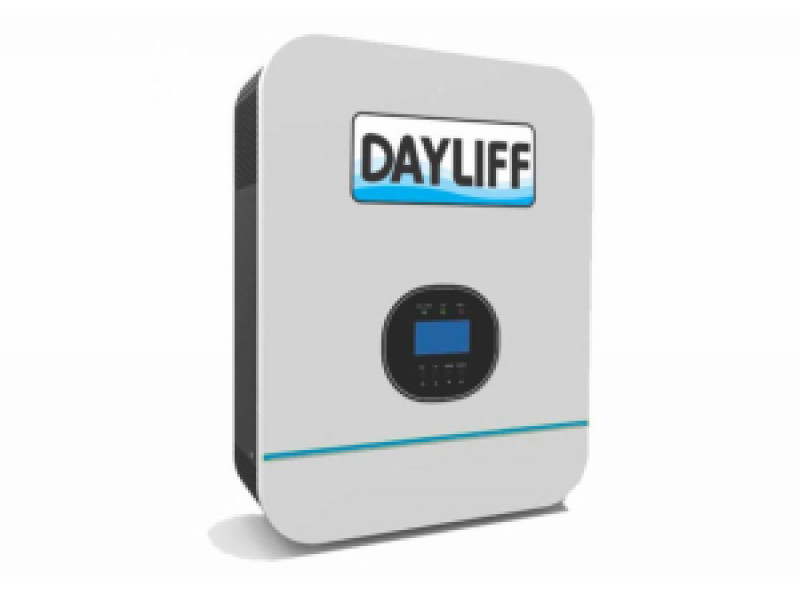

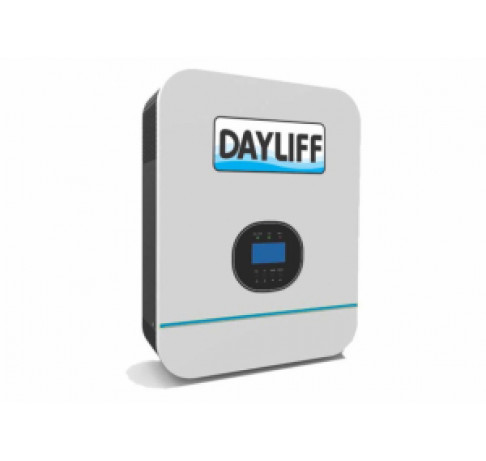

Dayliff Growatt 5000VA Multifunction Inverter


Smart Hybrid Inverters

Manufactured by Dayliff

KSh 100,800

The Dayliff Growatt inverter range are versatile high specification multifunction inverters designed for various applications including:-

  • Grid-Tie combining mains AC and PV module DC input power sources programmable to prioritize PV supply with mains power used to supplement load requirements.
  • Off-Grid for stand-alone PV solar-powered systems to provide AC power for various load requirements with battery backup for non PV availability.
  • Power backup systems for on-grid mains failure battery feed loads.

The Dayliff Growatt inverters include the following features:-

  • Pure sine wave output that provides filtered power for use with sensitive electronic devices.
  • LCD display for operating parameters and user-configurable settings including battery charging current, AC/Solar output priority, and input voltages.
  • Built-in smart charge controllers with automatic switching between AC and Solar power sources for optimized battery performance.
  • Built-in MPPT charge controller
  • Overload and short-circuit protection.
  • Programmable supply prioritization for PV, battery, or grid supply
  • Optional WIFI/GPRS for Monitoring software for real-time status display and control
  • Parallel operation for scalability available on 5000W model only
  • Compatible with lead-acid and lithium battery
Model GROWATT5000
Output Power 3000VA/2400W
DC Input Voltage (Nominal) 48VDC
AC Output Voltage/ Frequency (Nominal) 230VAC/50Hz
Selectable Voltage Range 170-280VAC (For personal computers), 90-280VAC (for home appliances)
Maximum Battery Charging Current (A) 20A or 30A
Surge Power 6000VA
Battery Low Alarm Voltage 10.5VDC
Battery Shutdown Voltage 21VDC
Battery Overcharge Protection 30VDC
Battery Maximum Charge Current 20A or 30A
Battery Charging Current (ISC) 50A
Solar Operating Voltage Range 30 -60VDC
Maximum PV Array Open Circuit Voltage 75VDC
Dimensions (LxWxH) mm 100x272x367
Weight (kg) 6.8
Humidity 5% to 95% Relative Humidity (non-condensing)
Operating Temperature 0C-55C
