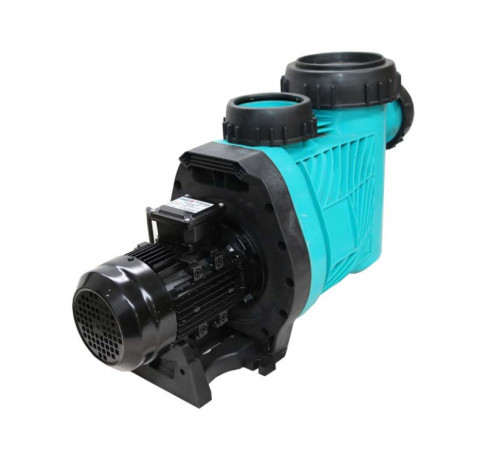

The Dayliff DPSolar pool pump is specifically designed for swimming pools, ponds and water features where mains power supply is unavailable. The pump end is made from premium corrosion free engineering plastic material and is provided with a large filter basket, quick release see through lid and inlet and outlet unions. It is manufactured to standards providing high efficiency, long life and excellent serviceability.
Pumps are provided with high-efficiency controllers which is in-built for the small units and separate for larger pumps with the following functionalities;
The pump is connected to a maintenance free, brushless DC motor without any electronics. The motor runs on variable speed to 3000rpm providing excellent performance and efficiency.
Enclosure Class: IPX4
Insulation Class: F
Pump output curves are given at standard test conditions of 1000W/m2 solar irradiance and 250C .Output will vary throughout the year depending upon prevailing irradiation levels. For estimated daily outputs at continuous pumping multiply by the daily irradiation given in Graph 1. For indicative purposes factors of 1.1 can be applied for hot arid areas and 0.9 for temperate high altitude in the tropics. Output will vary throughout
the day as a proportion of the estimated hourly irradiation as shown in Graph 2.
NOTE: Output estimations are strictly indicative. More accurate projections are available using manufacturers data when the exact site location and installation arrangement is defined. This information will be provided with all offers.
Pumped Liquid: Thin, clean non-aggressive liquids not containing fibers or particles
Max. Liquid Temperature: 60°C
Ambient Temperature: -30°C - +50°C
|Model||Power||Dimensions (mm)||Weight (kg)|
|kW||Rated Current (A)||Max. Current (A)||PV Modules (W)||Min. Voltage (V)||Max. Voltage (V)||DN1||DN2||L||W||H|
