  • Dayliff DDW 750V Drainage Pump

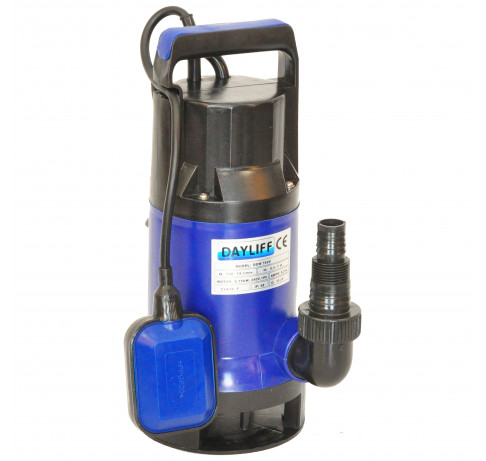

Dayliff DDW 750V Drainage Pump


Dayliff DDW 750V

Manufactured by Dayliff

KSh 10,200

Price is inclusive of 16% VAT

The DAYLIFF DDW submersible pump range are centrifugal submersible pumps designed for small scale drainage, irrigation, fountain and water transfer applications. Two versions are available, the standard S version with open impeller for lightly turbid water and the vortex version for water with higher silt loads.Pump construction is of high strength engineering plastic for the pump casing, suction base and impeller and an external float switch is provided for automatic pump control. All pumps are supplied with 5m of waterproof power cable and a union connected outlet suitable for threaded or hose connection.

Pumps are provided with intergral non-overloading induction motors designed for continuous operation. A thermal cut-out is provided in the motor winding to protect against pump overload and the pump can be connected directly to the mains power supply through a 10A fuse or MCB.
Enclosure Class X8
Voltage 1 X 240V
Insulation Class B
Speed 2900rpm
Operating Conditions
Pumped Liquid Thin, clean, chemically non aggressive liquids without abrasive particles or fibres
Maximum Fluid Temperature +35C
Maximum Operating Depth 8M
Pump Information
Model DDW 750V
Power (kW) 0.75
Maximum Operating Current (A) 5.2
Outlet 1 1/4"
Dimensions (mm) - H 350
Dimensions (mm) - W 250
Weight (kg) 6
