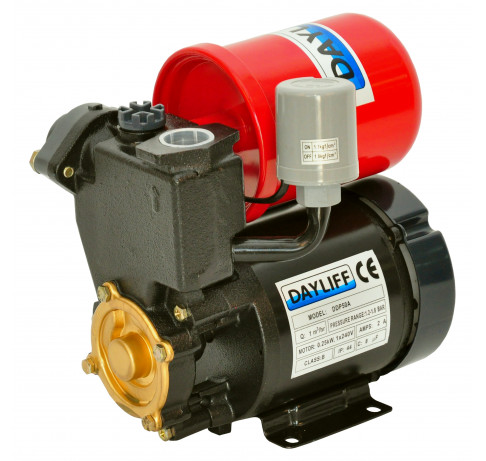

The DAYLIFF DDP50A is a robust and efficient automatic pressure controlled peripheral impeller booster pump suitable for domestic and small scale applications where on-demand water supply is required. The pump is self priming and is equipped with a diaphragm type pressure vessel and a pressure switch to provide fully automatic operation. Pump construction is a cast iron body with brass insert on the wearing surface and brass impeller.
The pump is close-coupled to a single-phase motor designed for continuous operation and is provided with a thermal cutout to protect against electrical overload. It can be connected directly to the mains power supply through a 5A fuse or MCB.
|Voltage||1 X 240V|
|Pumped Liquid||Thin, clean, chemically non aggressive liquids without abrasive particles or fibres|
|Maximum Fluid Temperature||+60C|
|Maximum Ambient Temperature||+40C|
|Maximum Suction Lift||7m (at sea level)|
|Cut in pressure||1.2 Bar|
|Cut out Pressure||1.8 Bar|
|Pressure Vessel Pre-charge Pressure||0.95 Bar|
|Dimension(mm) - DN1||25|
|Dimension(mm) - DN2||25|
