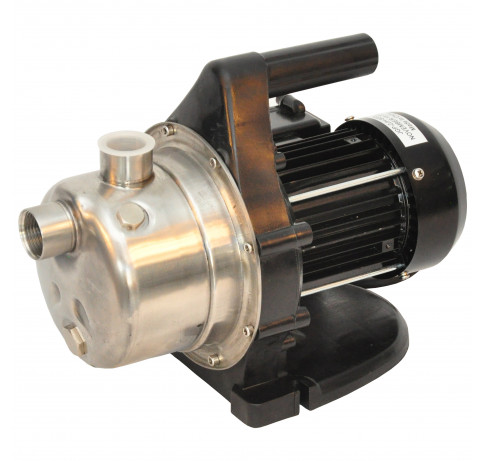

The DAYLIFF DDG pump is of single stage centrifugal impeller self priming design suitable for small scale irrigation, water boosting and water transfer applications. Materials of construction are stainless steel for the pump body, shaft and back plate with the impeller made from polypropylene. The pump is provided with a handle for easy portability, priming screw and a drain plug. Also available is the ‘AutoPress’ automatic booster system which incorporates a 19L horizontal diaphragm tank, pressure switch and pressure gauge for automatic pump operation. MOTOR Pumps incorporate a TEFC motor with built-in thermal overload protection.
Motor
The motor can be connected to mains electrical supply through a 10A fuse or MCB, though additional protection is recommended where there is risk of voltage fluctuation.
Motor | |
Enclosure Class | X4 |
Voltage | 1 X 240V |
Insulation Class | B |
Speed | 2900rpm |
Operating Conditions | |
Pumped Liquid | Thin, slightly aggressive liquids without solids or fibres |
Maximum Fluid Temperature | +35C |
Maximum Ambient Temperature | +40C |
Maximum Suction Lift | 6m (at sea level) |
Auto Press | Cut in pressure - 1.5 Bar, Cut out Pressure - 3 Bar |
Pump Information | |
Model | DDG1000 |
Power (HP) | 1 |
Power (kW) | 0.8 |
Current (A) | 2.5 |
Dimensions - DN1 | 1" |
Dimensions - DN2 | 1" |
Dimensions (mm) - L | 366 |
Dimensions (mm) - H | 244 |
Dimensions (mm) - W | 201 |
Weight (kg) | 7 |
