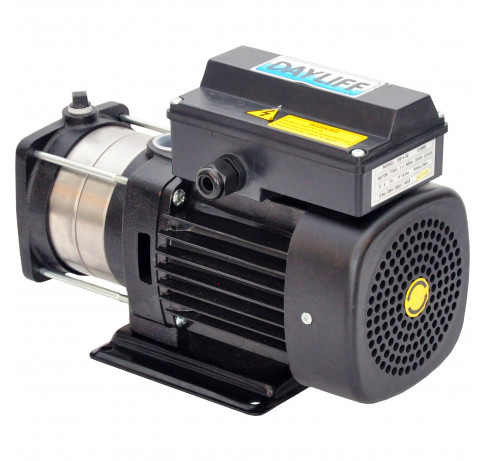

Dayliff DB 2-30 Pump

Available

Super Silent Booster Pump

Manufactured by Dayliff

KSh 33,200

Price is inclusive of 16% VAT

The DAYLIFF DB range of horizontal multistage centrifugal pumps are designed for continuous duty in various water transfer applications. The pump has small physical dimensions, axial suction port and radial discharge port and is base plate mounted. Suction chamber and pump head are made of grey cast iron, the impeller and impeller housing of stainless steel.
Both pump and continuously rated motor unit are of monoblock design, and particular attention has been paid to quietness and smooth operation.

MOTOR
The pump is coupled to a totally enclosed, fan cooled DAYLIFF single phase squirrel-cage motor with built in thermal overload protection. When connected to a power outlet fuse or MCB protection must be provided.

Motor
Enclosure Class IP54
Voltage 1x220-240V
Insulation Class F
Speed 2900rpm
Operating Conditions
Pumped Liquid Thin, clean, chemically non aggressive liquids without abrasive particles or fibres
Liquid Temperature Range 0C to +90C
Maximum Ambient Temperature +55C
Maximum Suction Lift According to the NPSH curve plus a safety margin of 1.0m
Speed 2900rpm
Maximum Inlet Pressure 6 Bars
Maximum Operating Pressure 10 Bar up to 40C, 6 Bar up to 90C
Pump Information
Model DB 2/30
Power (kW) 0.480
Maximum Operating Current (A) 2.3
Dimensions (mm) - H 224
Dimension(mm) L1 325
Dimension(mm) L2 91
Weight (kg) 12
Dimension(mm) L3 80
Dimension(mm) L4 118
Dimension(mm) B1 141
