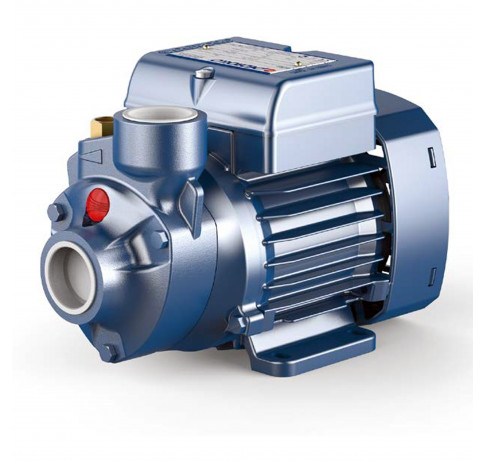

Pedrollo PKm60

Available

Africa's Best-selling Pump

Manufactured by Pedrollo

KSh 10,000

Price is inclusive of 16% VAT

The Pedrollo PKm is a robust, reliable and economical pump used principally for water transfer in domestic and small scale water transfer applications. The pump body is made from cast iron with a brass insert set into the front housing for improved starting performance and protection from jamming. The impeller is made from brass.

The pumps have been remodelled and re-engineered offering the following benefits;

  • Pedrollo logo inserted in the body pump
  • Quiet operation due to the anti vibration system between shaft and impeller
  • More compact
  • More efficient motor with low energy consumption and lower operating temperature.
  • Special paint which gives improved resistance against environmental corrosion
  • Longer life

Pumps can be installed for manual or automatic control using either the unique ‘Presscontrol’ unit or a pressure tank and switch. Also available is the integral ‘Hydrofresh’ version (Pkm60 only) which combines a 24L horizontal diaphragm tank, pressure switch and gauge with pressure settings of 1.4 Bar for pump start and 2.8 Bar for pump stop.

MOTOR

Pumps are close coupled to a TEFC brushless induction motor designed for continuous operation. A thermal relay is provided in the windings to protect against electrical and mechanical overload and the pump can be connected directly to the mains power supply through a 10amp fuse or MCB.

Motor
Enclosure Class PKm60 PKm65:IP44
Voltage 1 X 240V
Insulation Class F
Speed 2800rpm
Operating Conditions
Pumped Liquid Thin, clean, chemically non aggressive liquids without abrasive particles or fibres
Maximum Fluid Temperature +60C
Maximum Ambient Temperature +40C
Maximum Suction Lift 7m (at sea level)
Pump Information
Model PKm60
Power (kW) 0.37
Maximum Operating Current (A) 2.5
Dimensions (mm) - DN1 1"
Dimensions (mm) - DN2 1"
Dimensions (mm) - L 210
Dimensions (mm) - H 145
Dimensions (mm) - H1 56
Dimensions (mm) - W 118
Weight (kg) 5.2
  • Pedrollo logo inserted in the body pump
  • Quiet operation due to the anti vibration system between shaft and impeller
  • More compact
  • More efficient motor with low energy consumption and lower operating temperature.
  • Special paint which gives improved resistance against environmental corrosion
  • Longer life
