SP46

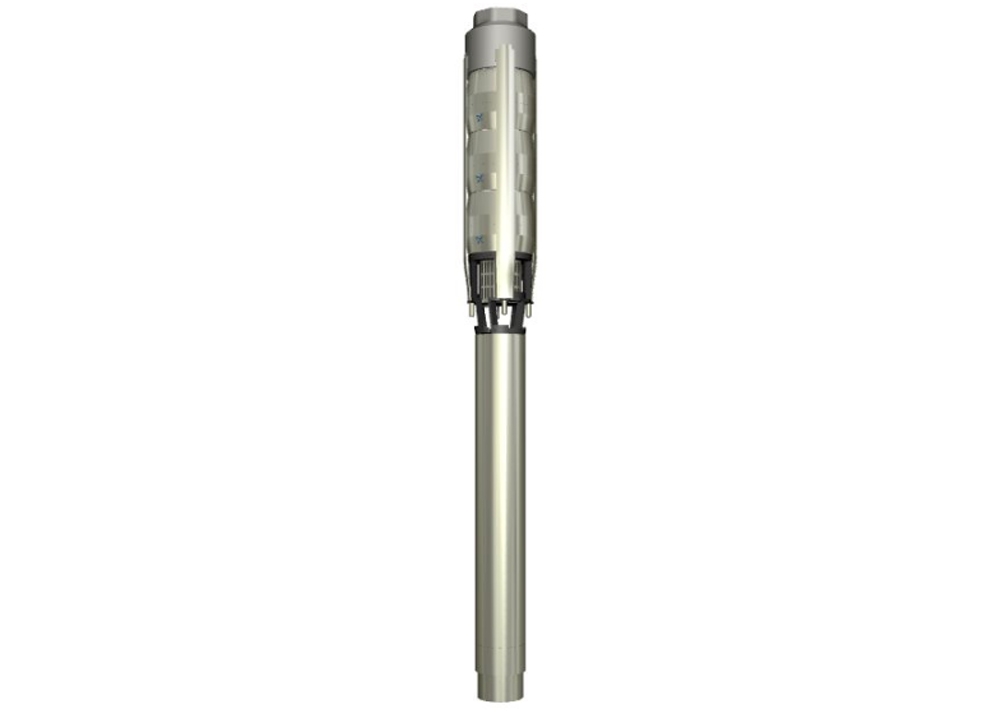

GRUNDFOS SP submersible pumps are designed specifically for borehole supply applications. They are of multistage centrifugal impeller design and all parts are made from stainless steel with water lubricated rubber bearings. A submersible motor is fitted beneath the pump and suction is effected through a strainer between the pump and motor.

Standard pumps are designed for the pumping of non-aggressive water. 'N and R' versions are available for applications requiring a higher degree of corrosion resistance.

All SP pumps carry a drinking water approval and meet European Minimum Efficiency Index guidelines

MOTOR
The pump is coupled to a sealed, liquid cooled 2-pole asynchronous GRUNDFOS motor constructed of stainless steel with ceramic bearings. All motors are also fitted with a built-in sensor which monitors running temperatures. When fitted with the patented GRUNDFOS MP 204 control unit protection is provided against dry running, mechanical motor defects, excessive motor running temperature and irregular power supply. The fitting of a MP 204 unit is recommended for motor control and monitoring and also extended motor life.

Note that irrespective of the fitting of a MP 204 control unit a remote starter is required. Due to the low starting torques of submersible motors it is recommended that Direct-on-Line starters are used for all motor sizes up to 22kW.

Enclosure Class: IP58
Insulation Class: F
Voltage: 3x415V
Speed: 2900rpm

Operating Conditions
Pumped Liquid
: Thin, clean chemically non-aggressive liquids without solid particles or fibres.
Max. Liquid Temperature: +40°C.
Max. Water Depth: 600m
Min. Borehole Diameter: 200mm

PUMP DATA

Model Motor Full Load Current (A) Istart/I Motor Dimensions (mm) Weight (kg)
kW HP A B C D E
SP 46-5 7.5 10 17.6 4.5 MS6000 1406 574 832 138 147 54
SP 46-7 11 15 24.8 4.7 MS6000 1698 634 1064 138 147 68
SP 46-10 15 20 34 5 MS6000 2102 699 1403 138 147 82
SP 46-12 18.5 25 42 5.1 MS6000 2383 754 1629 138 147 93
SP 46-15 22 30 48 5 MS6000 2782 814 1968 138 147 106
SP 46-17 26 35 57 4.9 MS6000 3068 874 2194 138 147 117
SP 46-20 30 40 66.5 4.9 MS6000 3477 944 2533 138 147 132



E* = Maximum diameter of the pump with one motor cable
